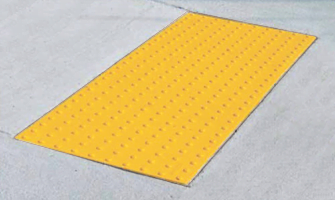

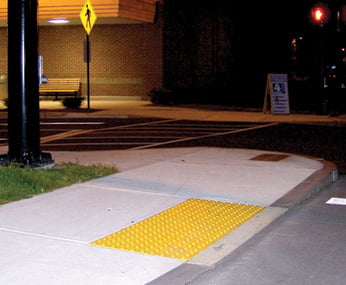

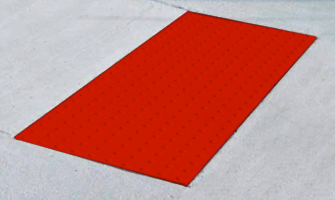

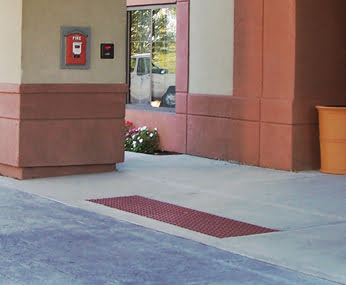

ADA Detectable Warning Tile – Composite

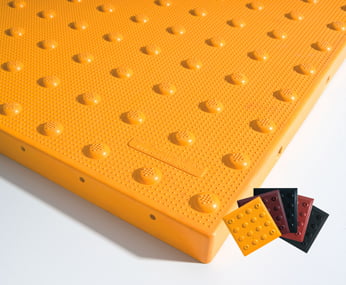

The Cast in Place Tactile is made of a colorfast and UV stable homogenous glass and carbon composite with fiberglass truncated domes for enhanced durability.

The Cast in Place Tactile is used for new curb ramps or new construction applications and is a great long-term solution for any project, under any weather conditions.

All of our truncated dome tactile surfaces are in full compliance with the American Disabilities Act Accessibility Guidelines (ADAAG), Public Right-of-Way (PROW) and California Title 24 Requirements. ADA Solutions Inc., products are approved for use by all major municipalities, DPW’s and state DOT’s.

Features:

• For use in new curb ramps or new construction

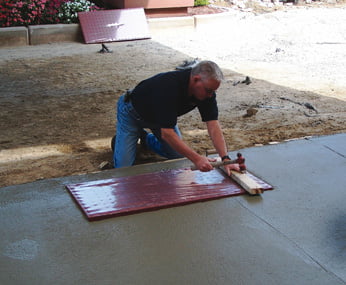

• Pressed into place in freshly poured concrete
• Cast-In-Place Tiles have a 1/4″ nominal thickness and feature embedment ribs 3″ on center through entire length of tile
• Plastic sheeting protection covers entire surface of Cast-In-Place Tile
• Standard sizes: 24″ x 36″, 24″ x 48″, 24″ x 60″, 36″ x 48″ and 36″ x 60″.

ADA Cast-In-Place Tiles [Info]
ADA Cast-In-Place Tiles [Brochure]
