Allan Block Retaining Wall Collection

If you’re looking for the perfect blend of performance and style, choose the AB® Collection. A favorite for years, it stacks beautifully and creates a smooth, fluid finish for every wall and promises to deliver maximum performance.

Whether you are building a simple raised garden or tackling a major hillside, the AB Collection will provide just what you need.

Product Number	Description	Color	Dimensions (WxHxL)	Weight	No./ Pallet

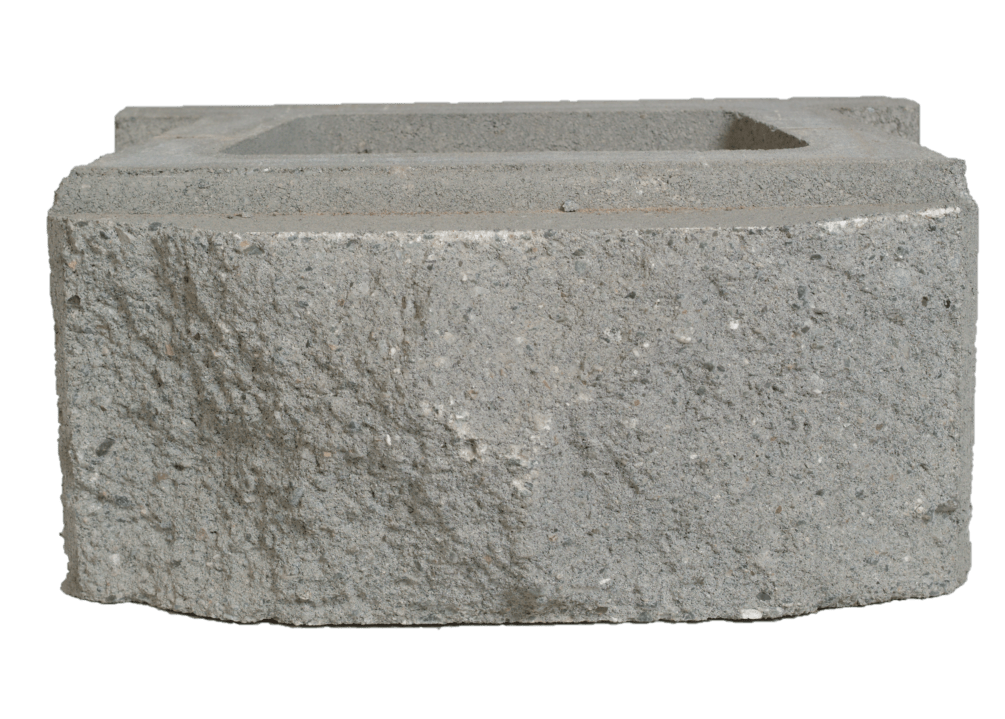

ABR GR	AB Rock	Gray	12″ x 8″ x 18″	75 lbs	40

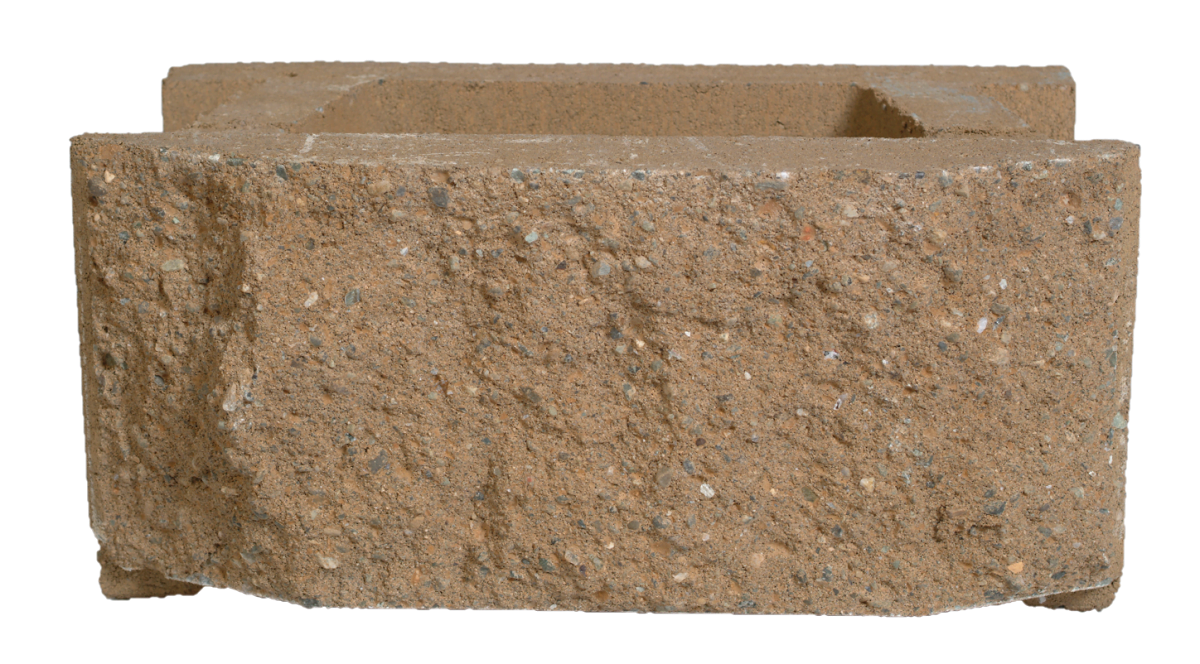

ABR CB	AB Rock	Caribou Buff	12″ x 8″ x 18″	75 lbs	40

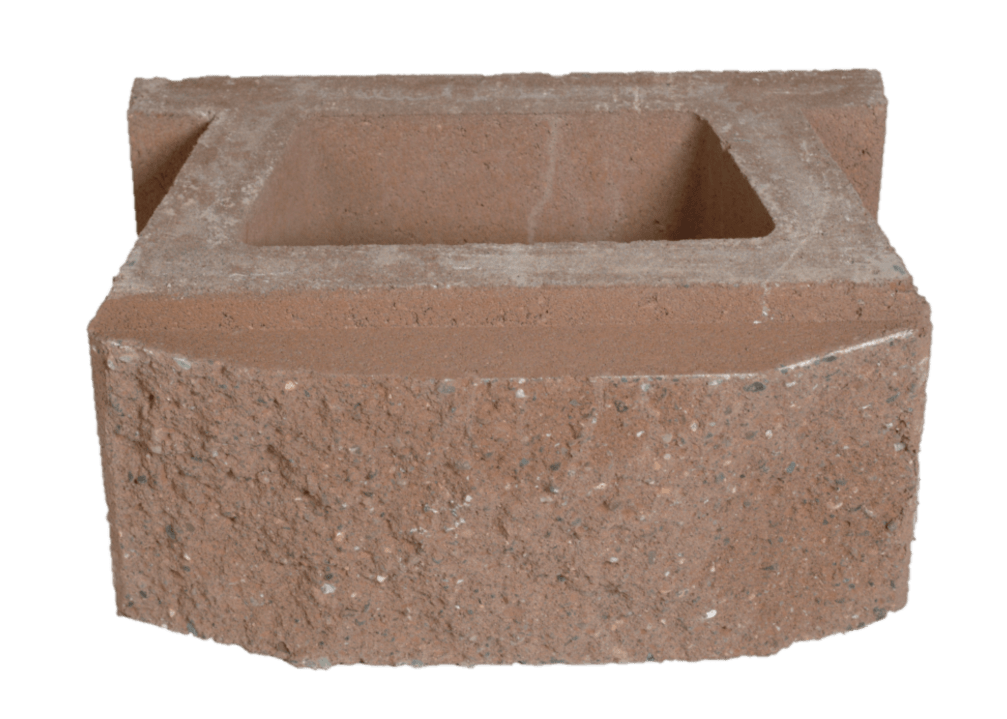

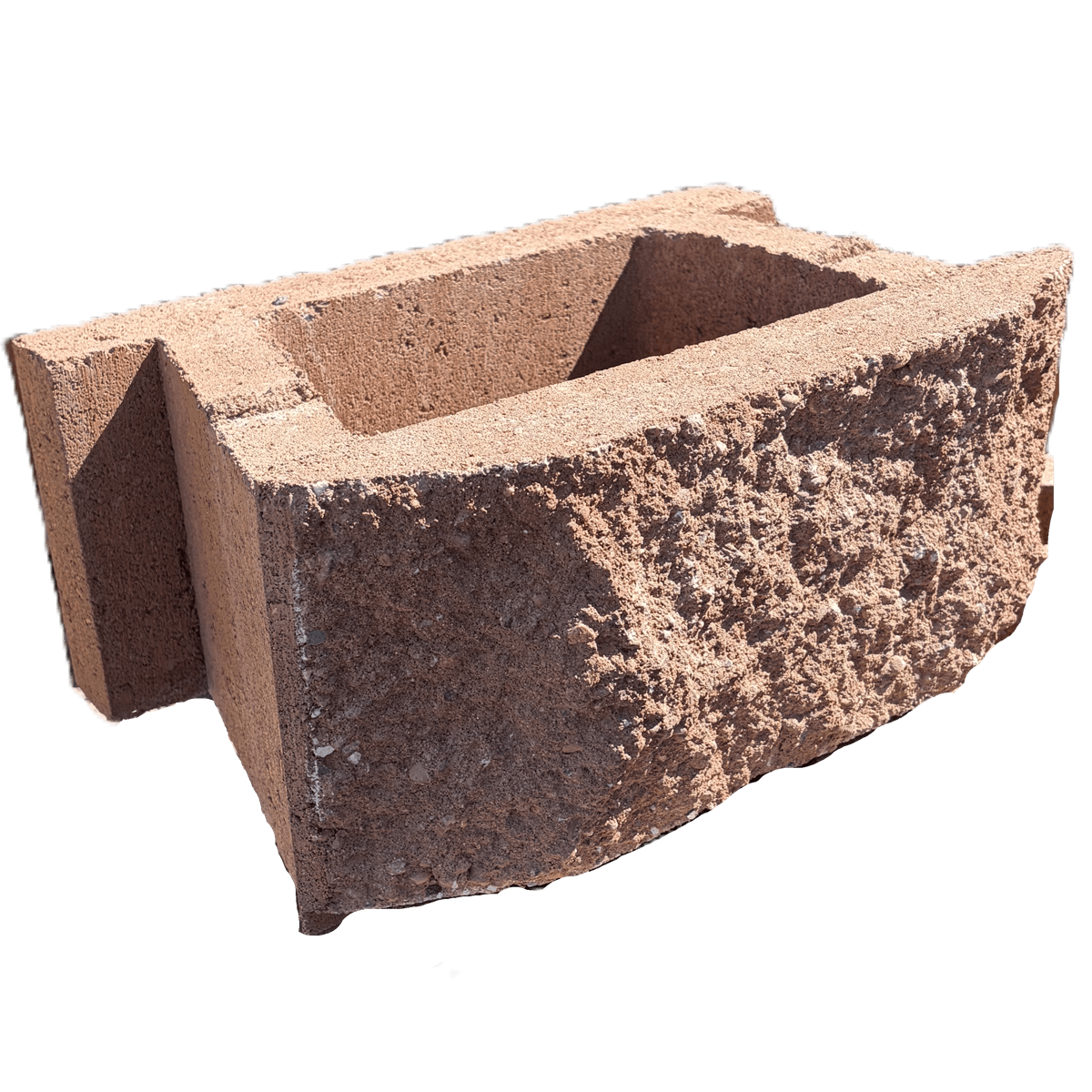

ABR KB	AB Rock	Kodiak Brown	12″ x 8″ x 18″	75 lbs	40

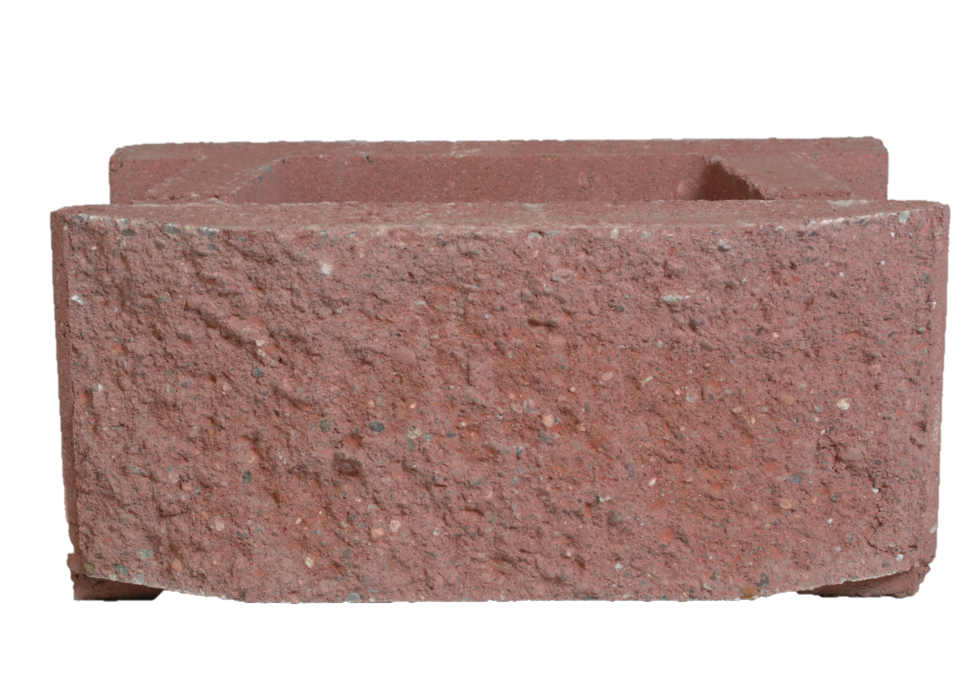

ABR AR	AB Rock	Aurora Red	12″ x 8″ x 18″	75 lbs	40

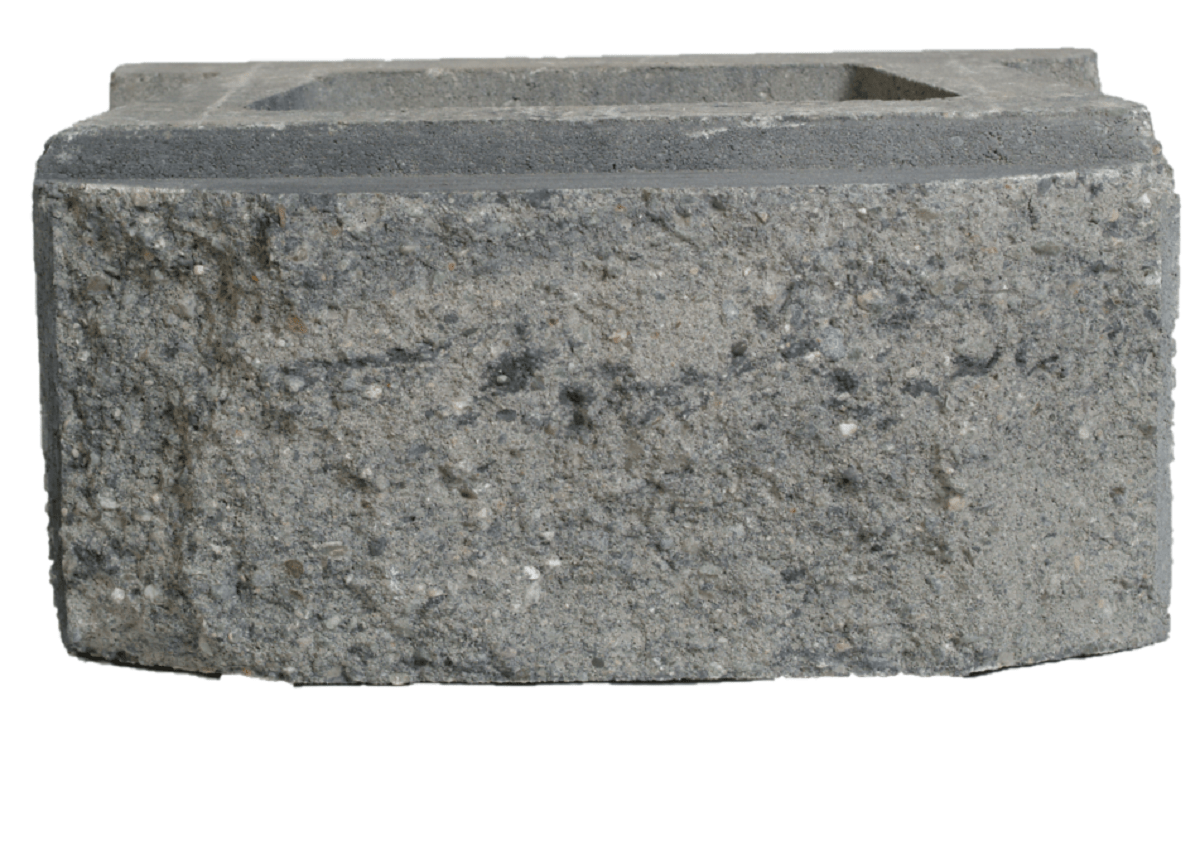

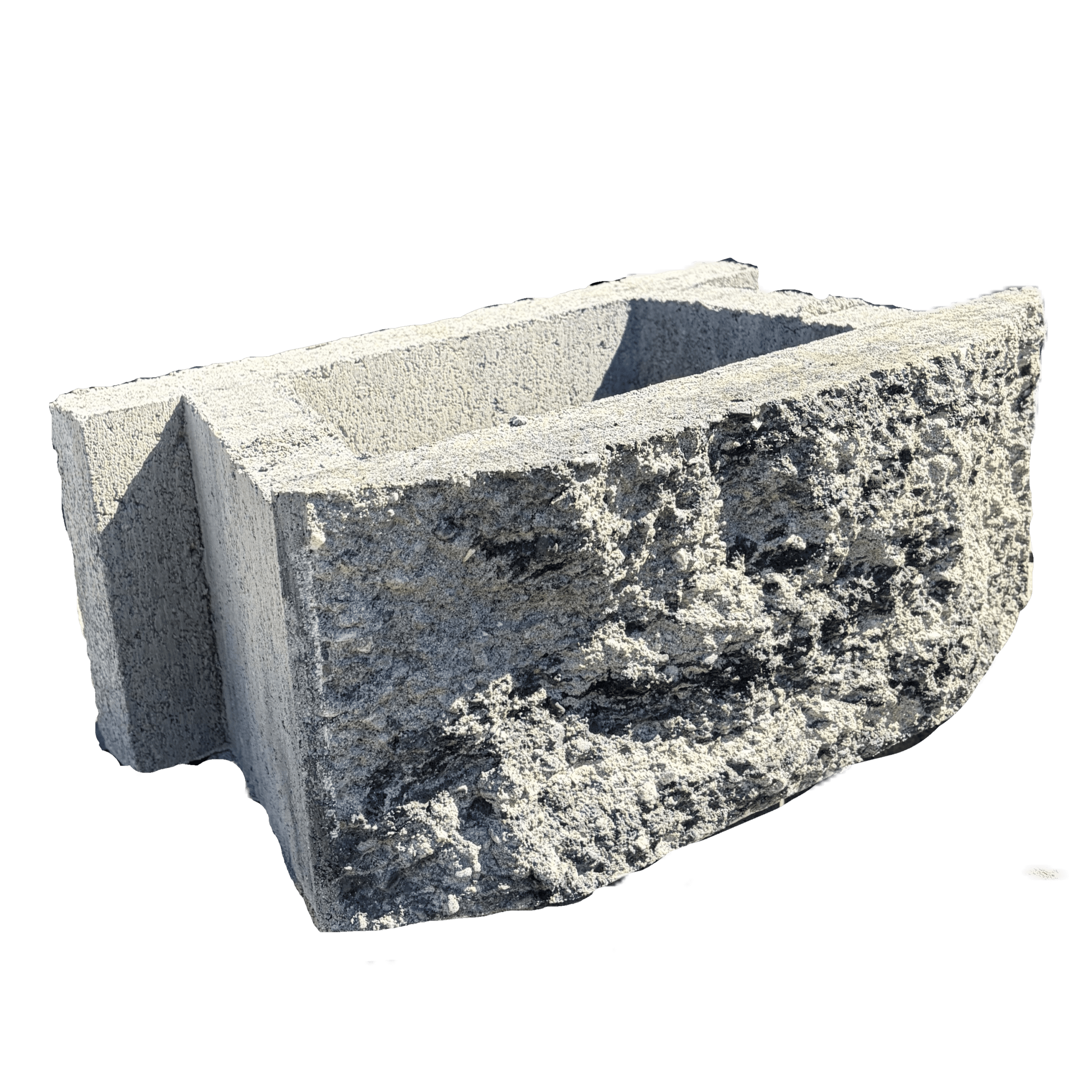

ABR GRRB	AB Rock	Gray/ Raven Black	12″ x 8″ x 18″	75 lbs	40

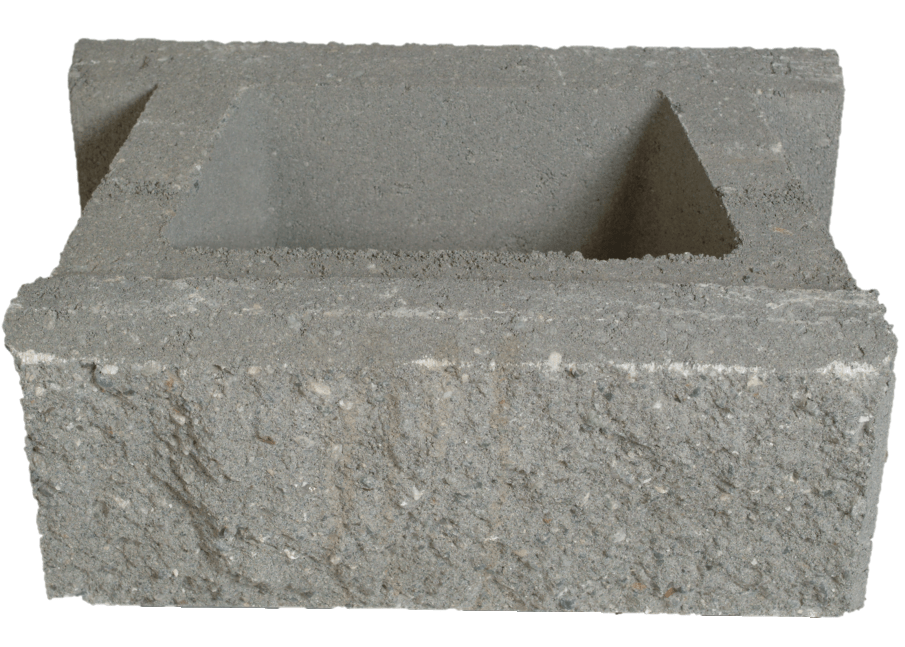

ABC GR	AB Classic	Gray	12″ x 8″ x 18″	75 lbs	40

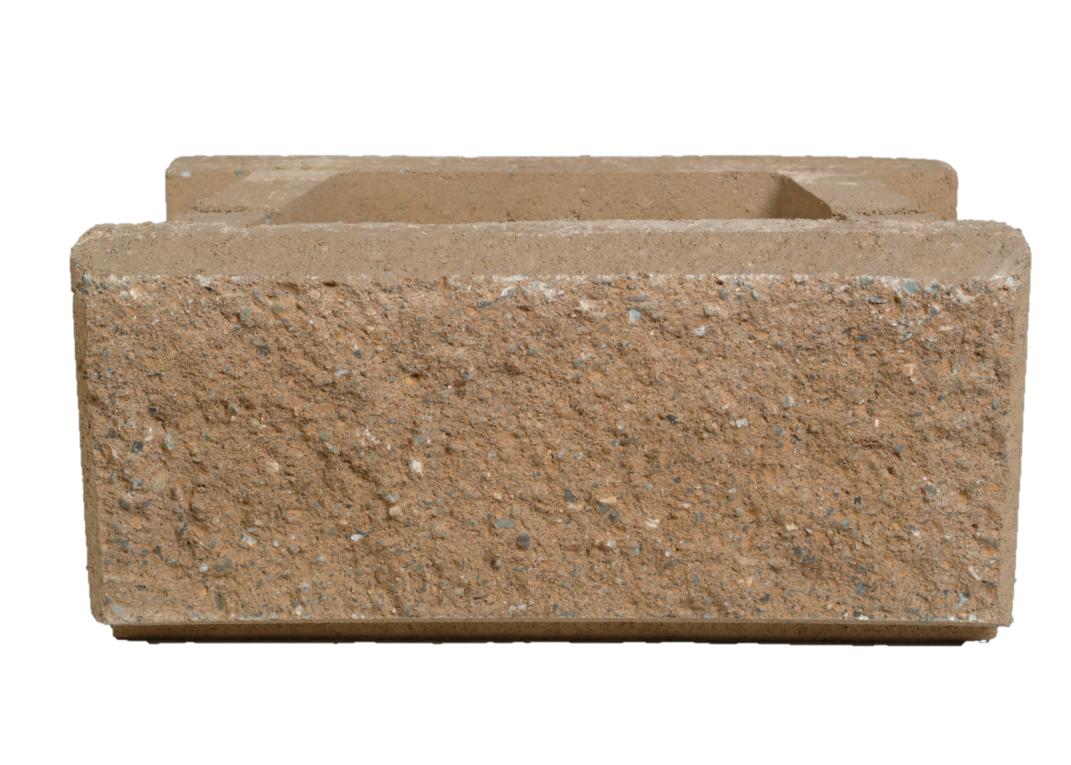

ABC CB	AB Classic	Caribou Buff	12″ x 8″ x 18″	75 lbs	40

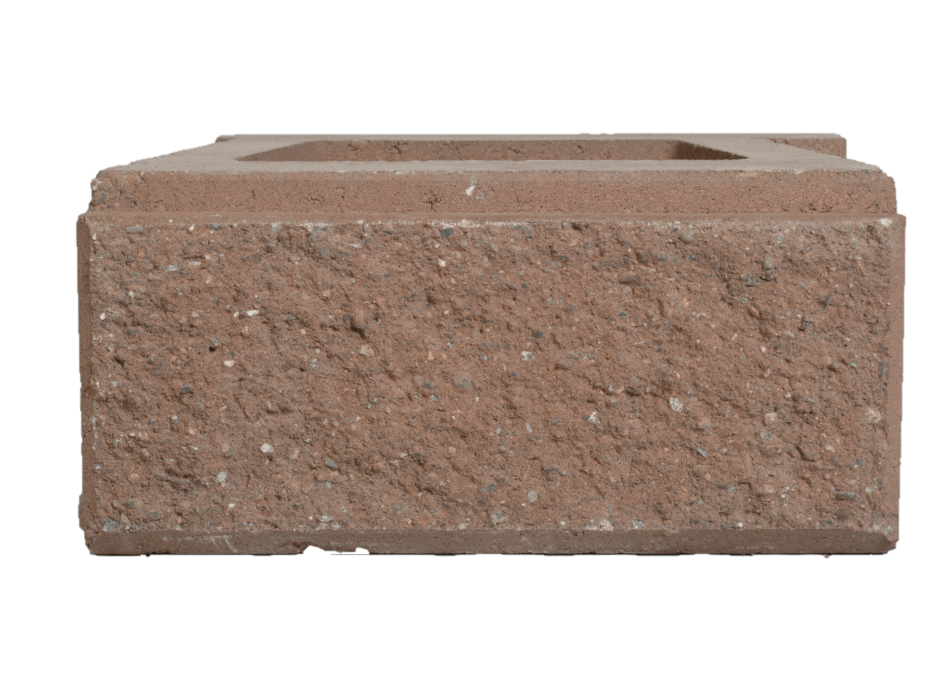

ABC KB	AB Classic	Kodiak Brown	12″ x 8″ x 18″	75 lbs	40
ABC AR	AB Classic	Aurora Red	12″ x 8″ x 18″	75 lbs	40

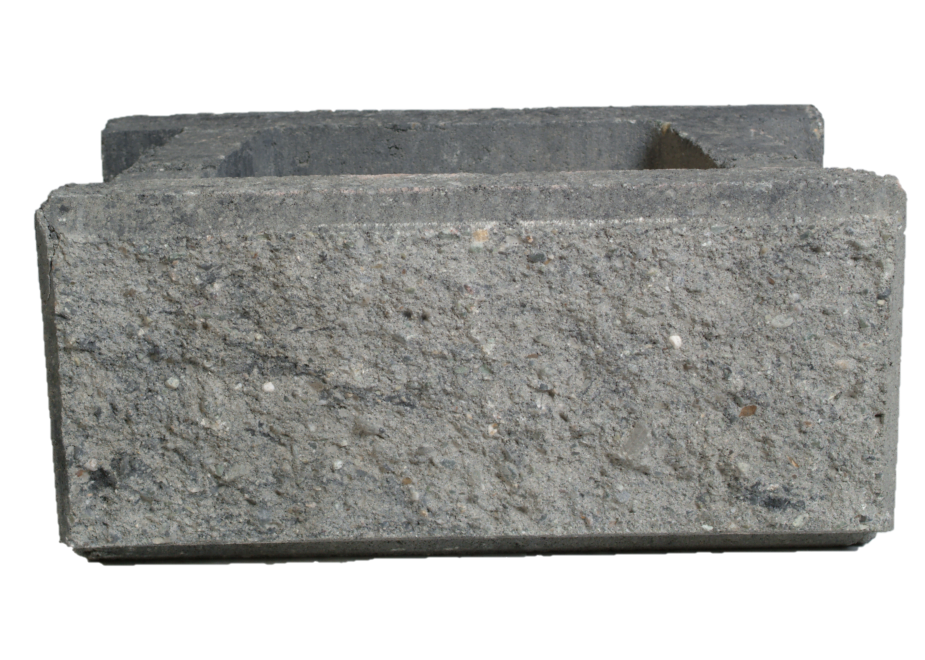

ABC GRRB	AB Classic	Gray/ Raven Black	12″ x 8″ x 18″	75 lbs	40

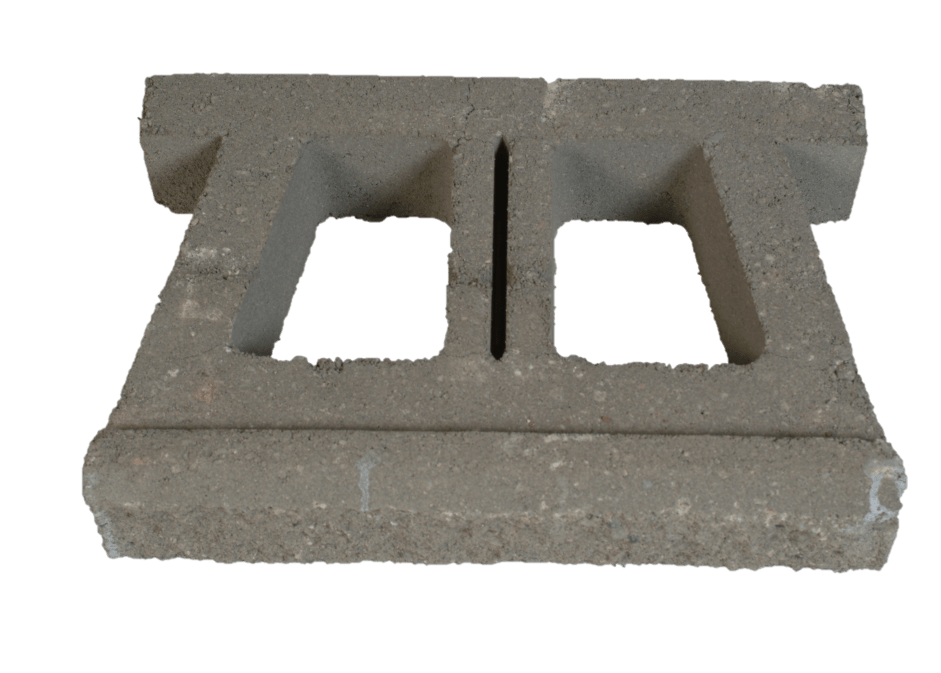

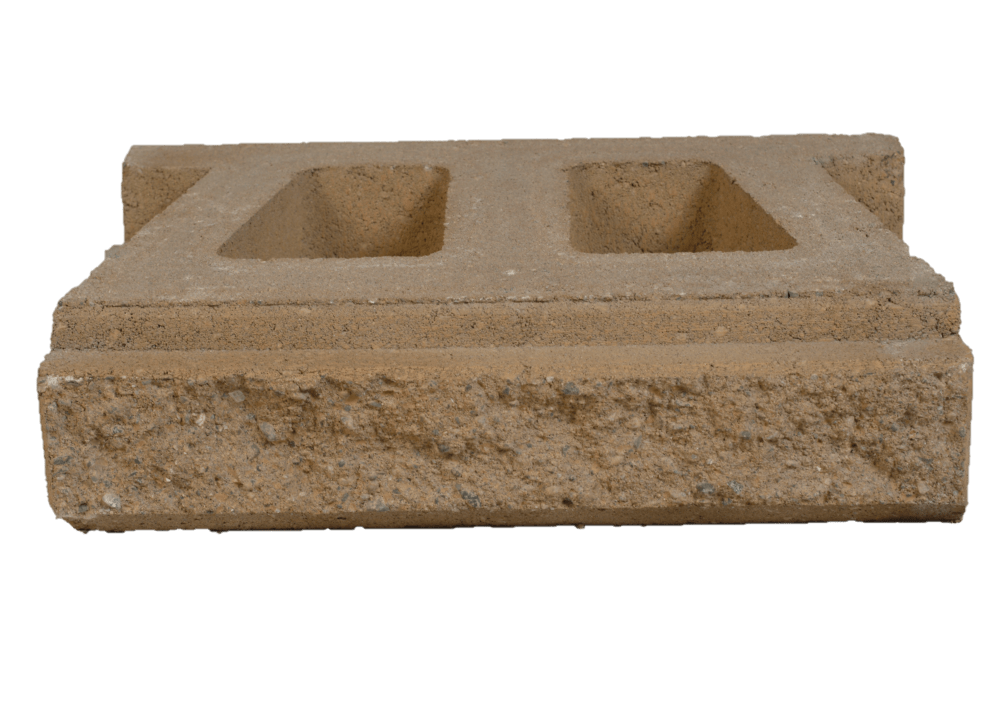

ABCL GR	AB Classic Lite	Gray	16″ x 4″ x 18″	35 lbs	80

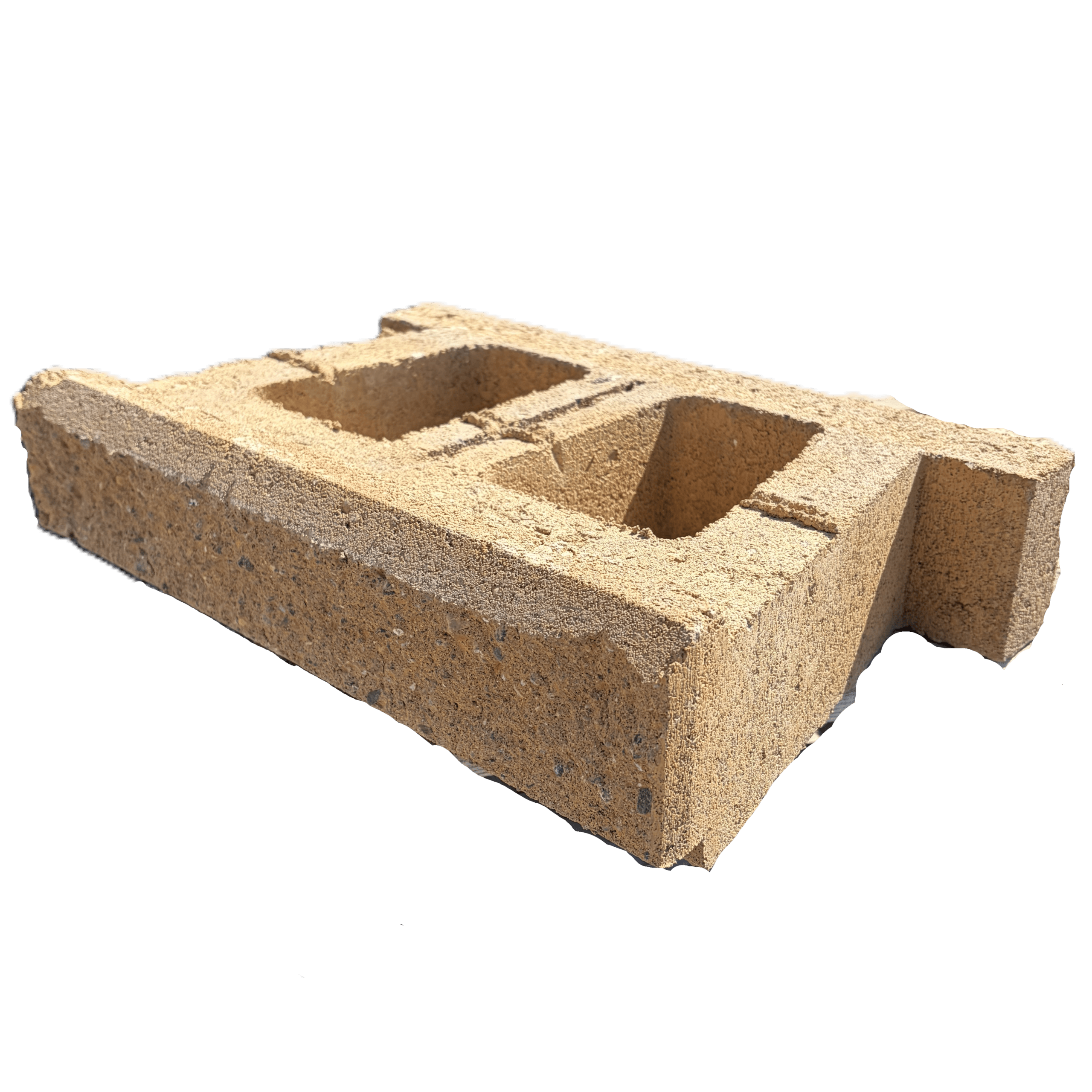

ABCL CB	AB Classic Lite	Caribou Buff	16″ x 4″ x 18″	35 lbs	80

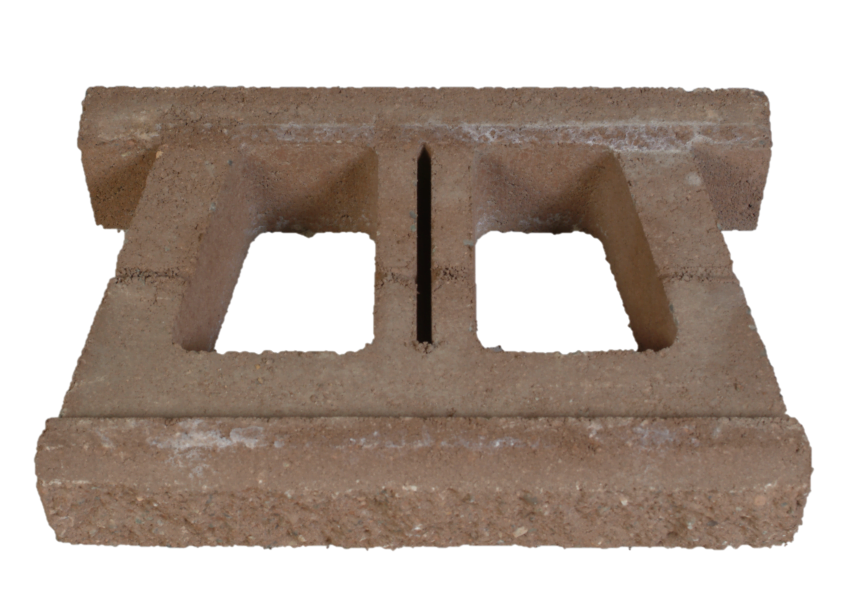

ABCL KB	AB Classic Lite	Kodiak Brown	16″ x 4″ x 18″	35 lbs	80

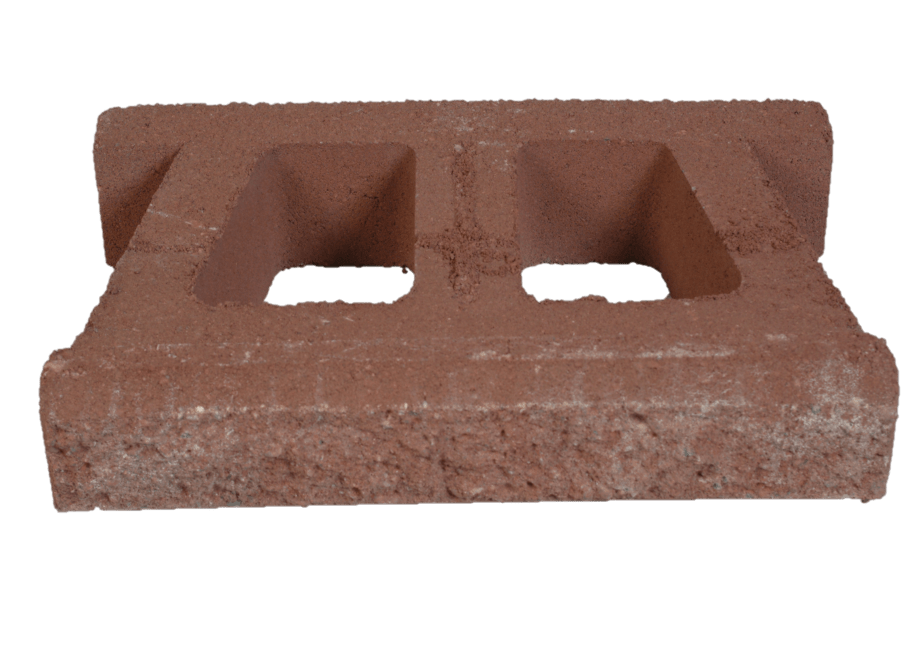

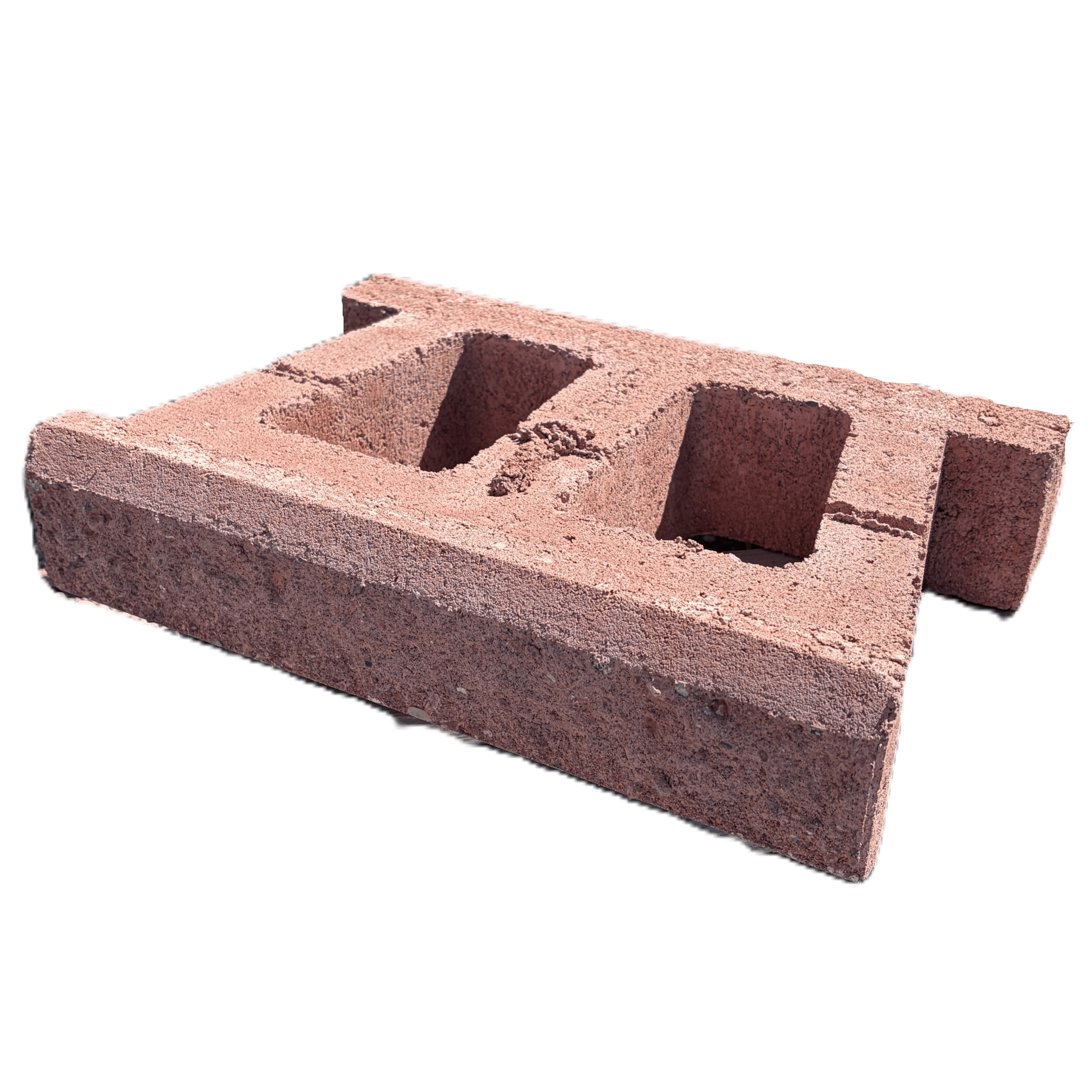

ABCL AR	AB Classic Lite	Aurora Red	16″ x 4″ x 18″	35 lbs	80

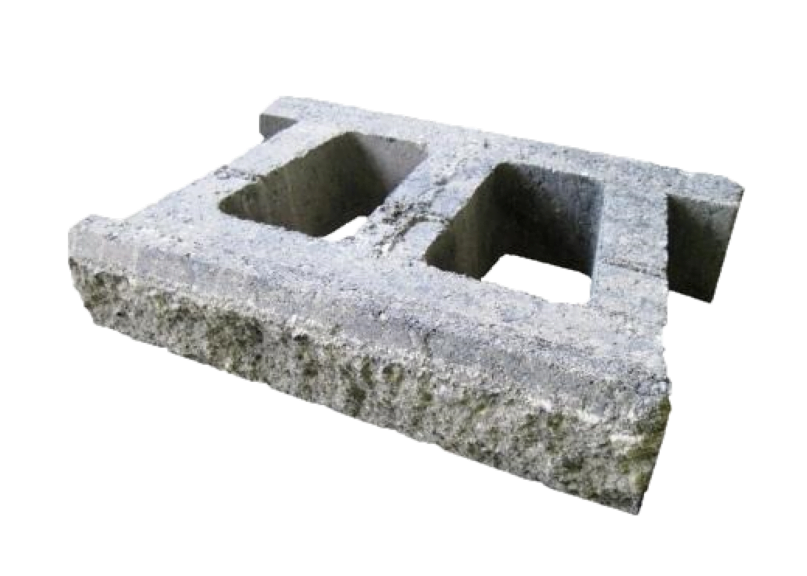

ABCL GRRB	AB Classic Lite	Gray/ Raven Black	16″ x 4″ x 18″	35 lbs	80

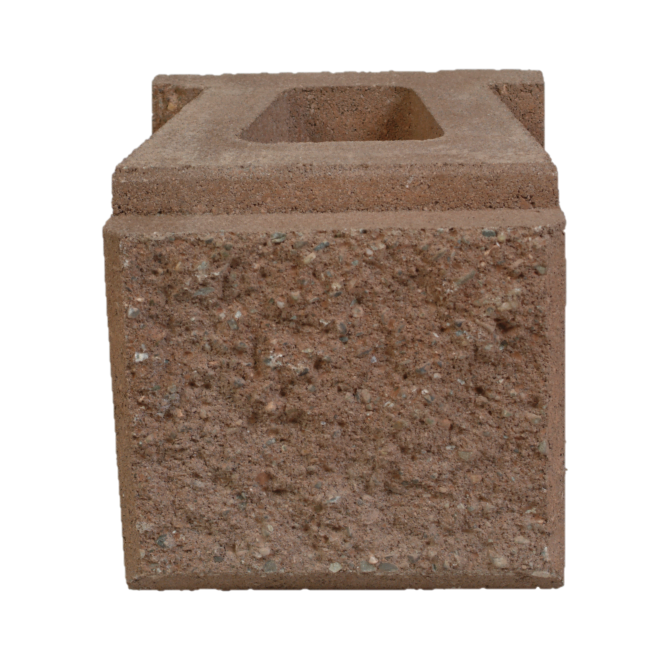

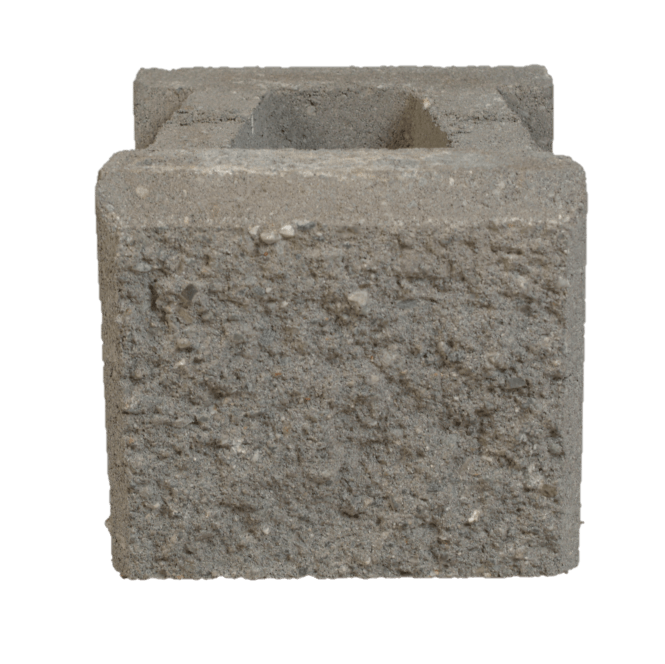

ABJ GR	AB Junior	Gray	10″ x 8″ x 8-1/2″	35 lbs	80

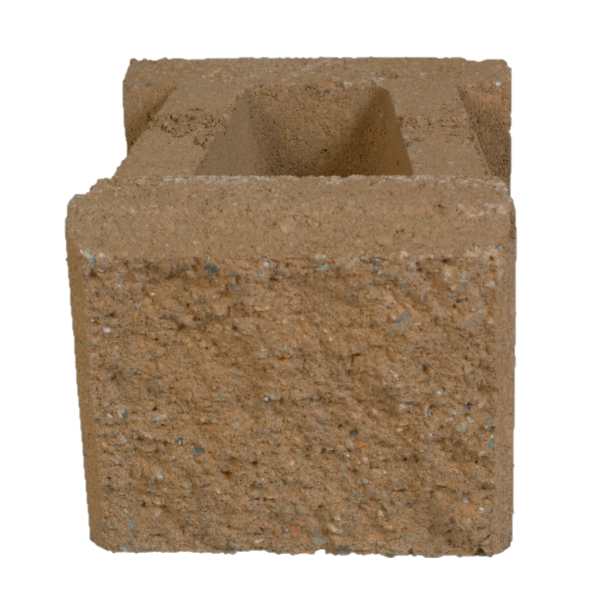

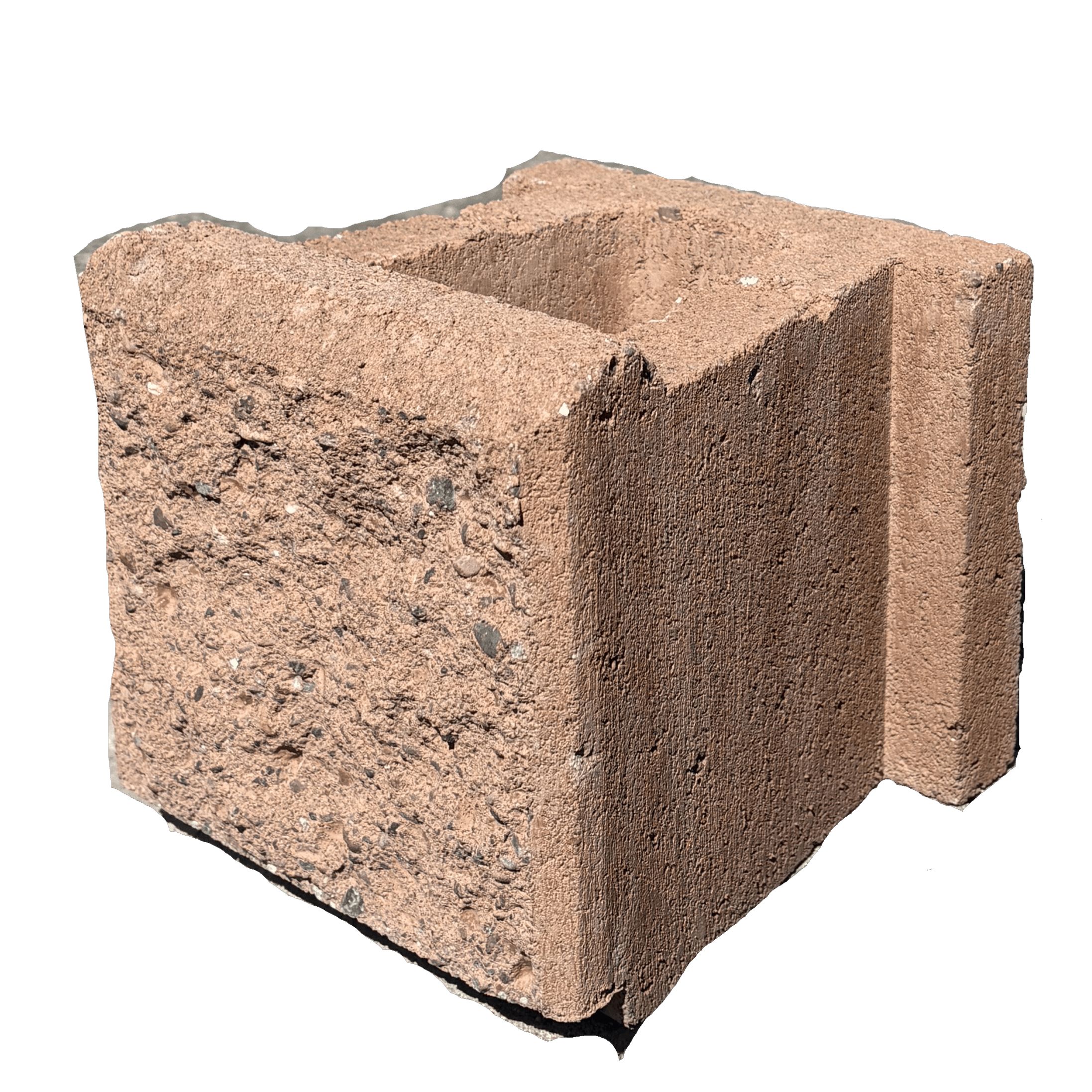

ABJ CB	AB Junior	Caribou Buff	10″ x 8″ x 8-1/2″	35 lbs	80
ABJ KB	AB Junior	Kodiak Brown	10″ x 8″ x 8-1/2″	35 lbs	80

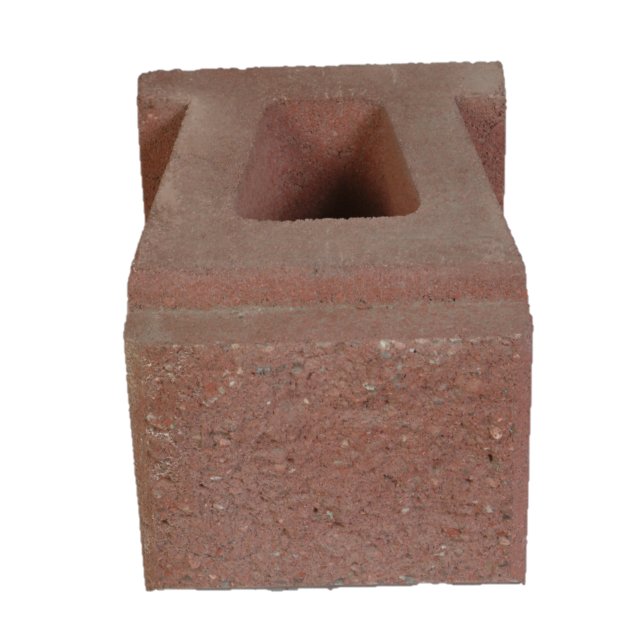

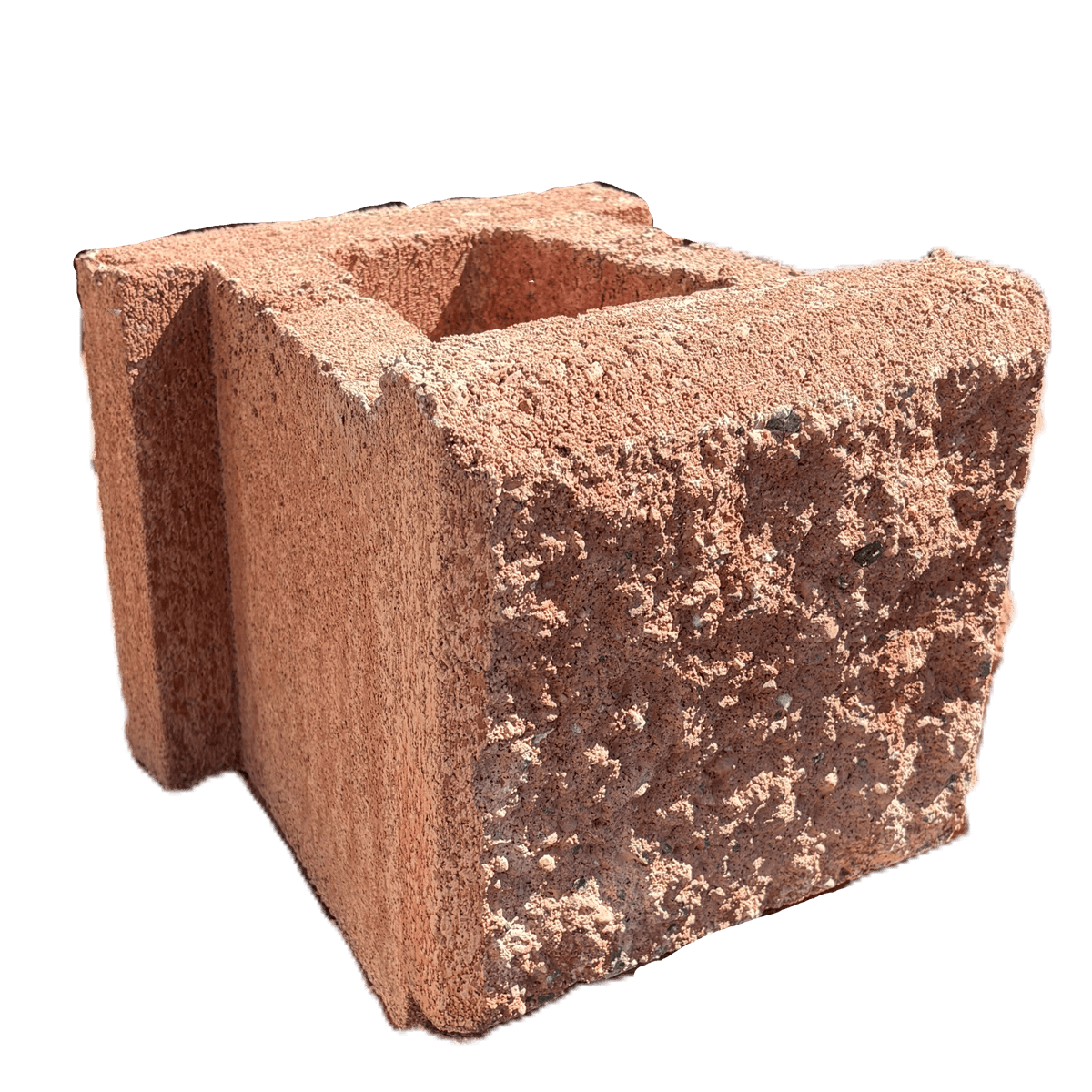

ABJ AR	AB Junior	Aurora Red	10″ x 8″ x 8-1/2″	35 lbs	80

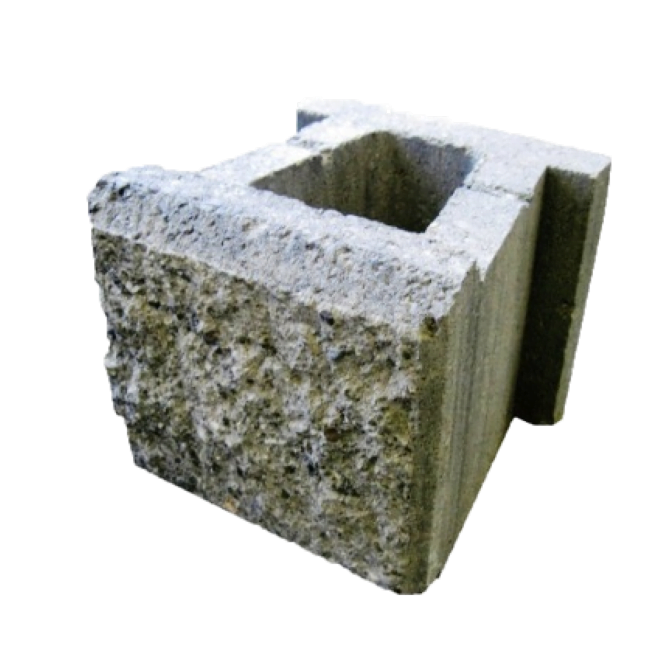

ABJ GRRB	AB Junior	Gray/ Raven Black	10″ x 8″ x 8-1/2″	35 lbs	80

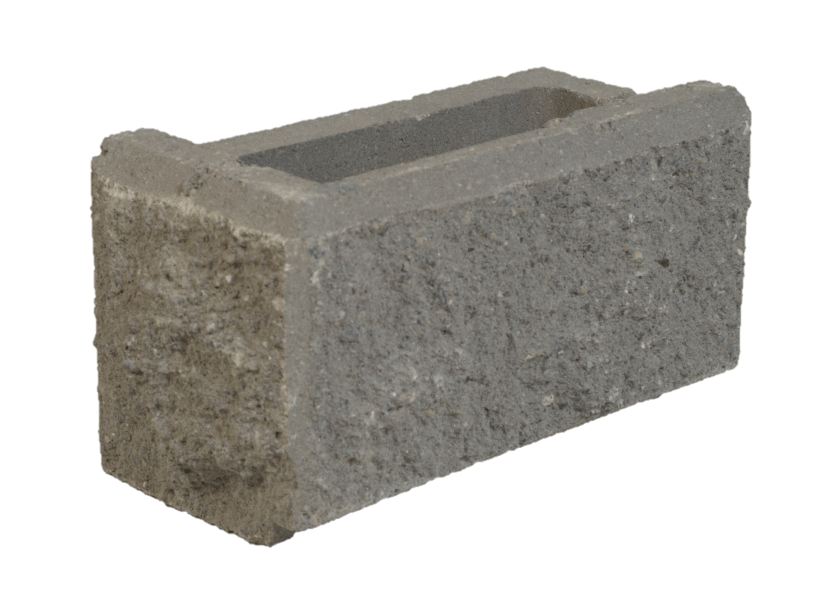

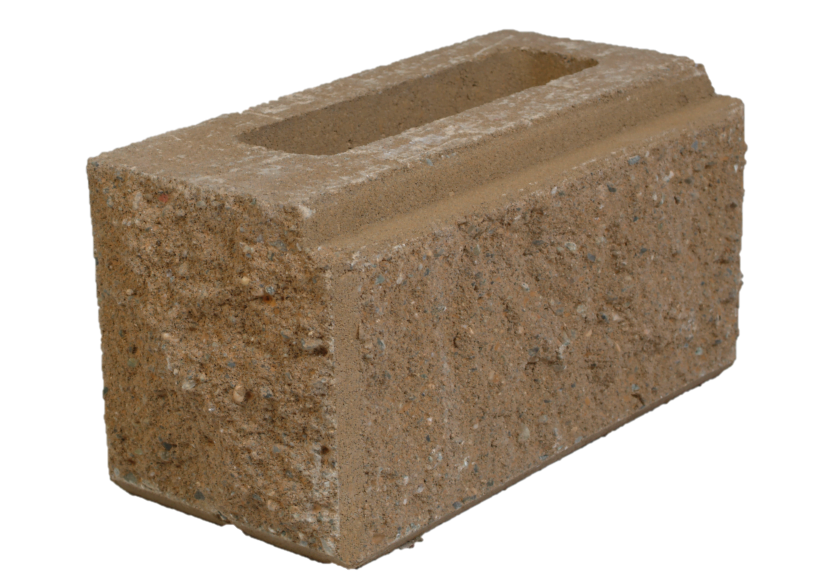

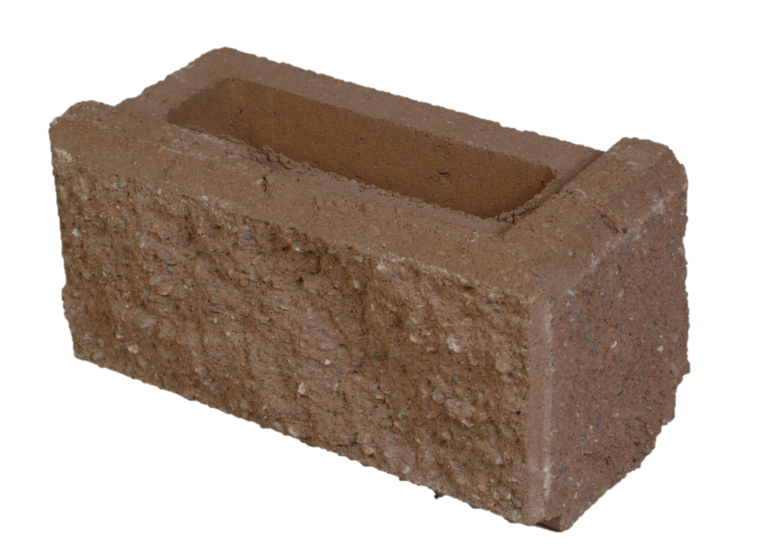

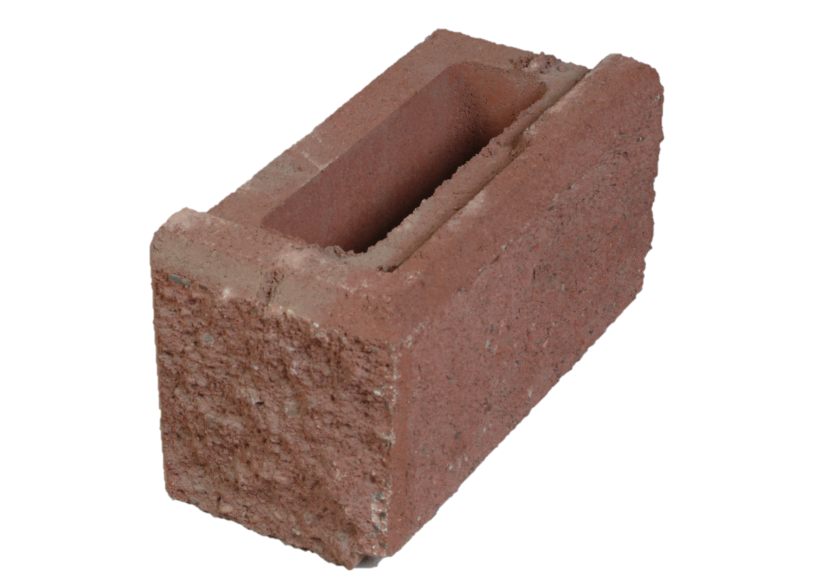

ABCCRN GR	AB Classic Corner	Gray	8″ x 8″ x 16″	53 lbs	75

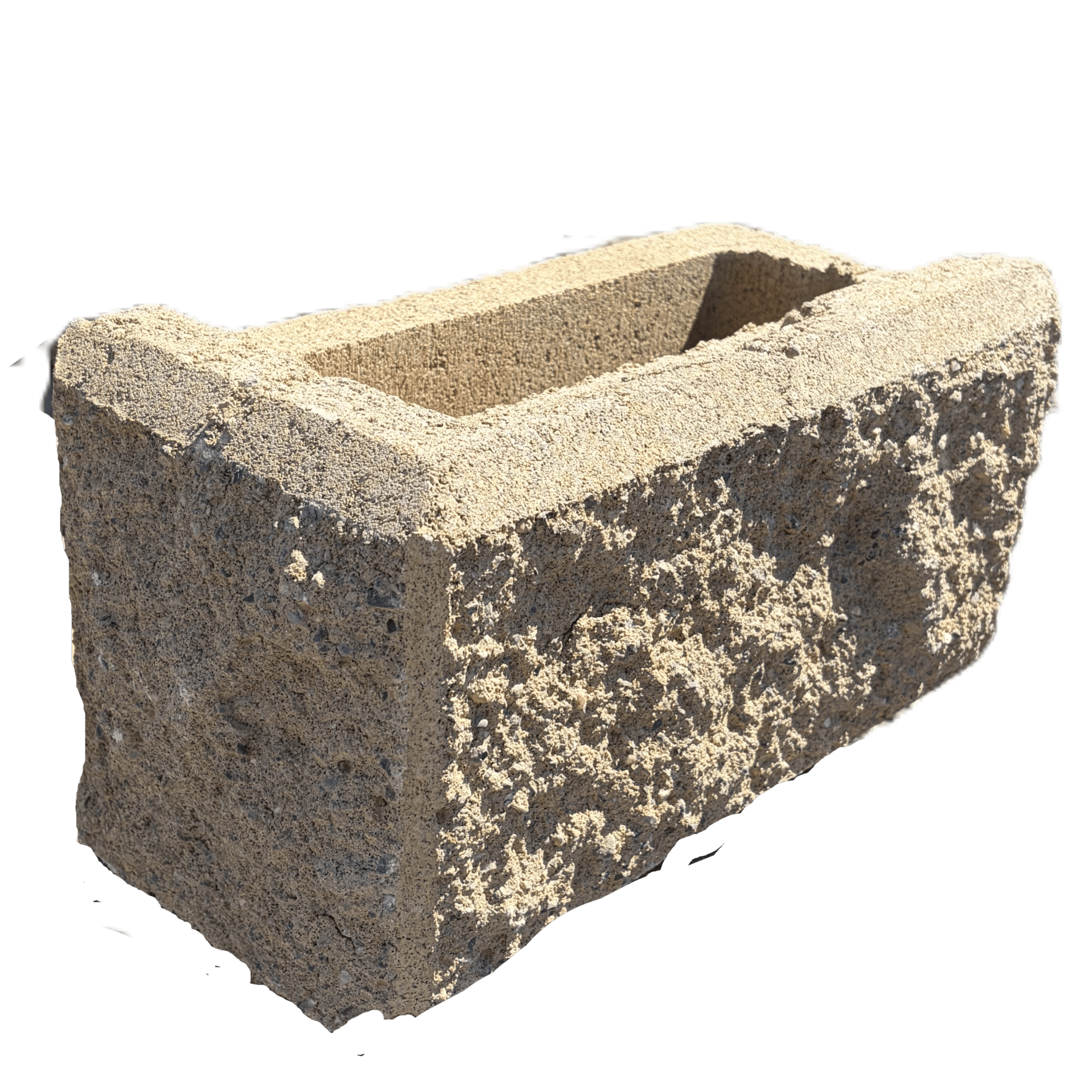

ABCCRN CB	AB Classic Corner	Caribou Buff	8″ x 8″ x 16″	53 lbs	75
ABCCRN KB	AB Classic Corner	Kodiak Brown	8″ x 8″ x 16″	53 lbs	75
ABCCRN AR	AB Classic Corner	Aurora Red	8″ x 8″ x 16″	53 lbs	75

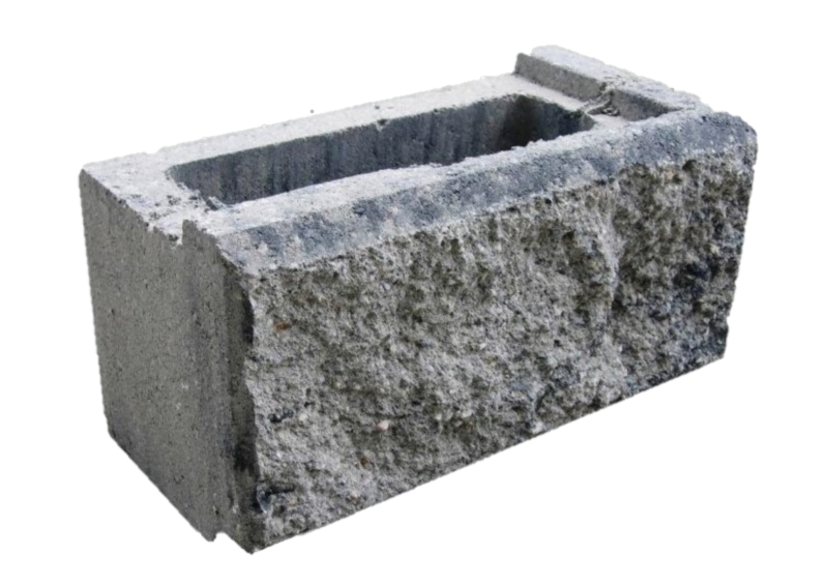

ABCCRN GRRB	AB Classic Corner	Gray/ Raven Black	8″ x 8″ x 16″	53 lbs	75

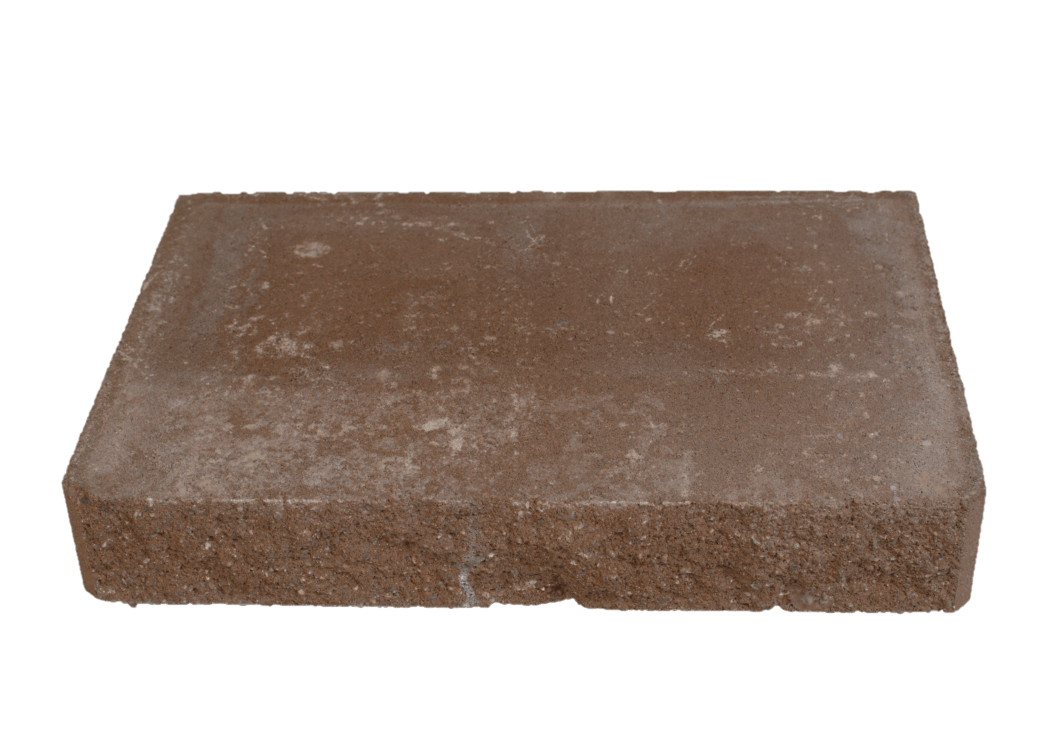

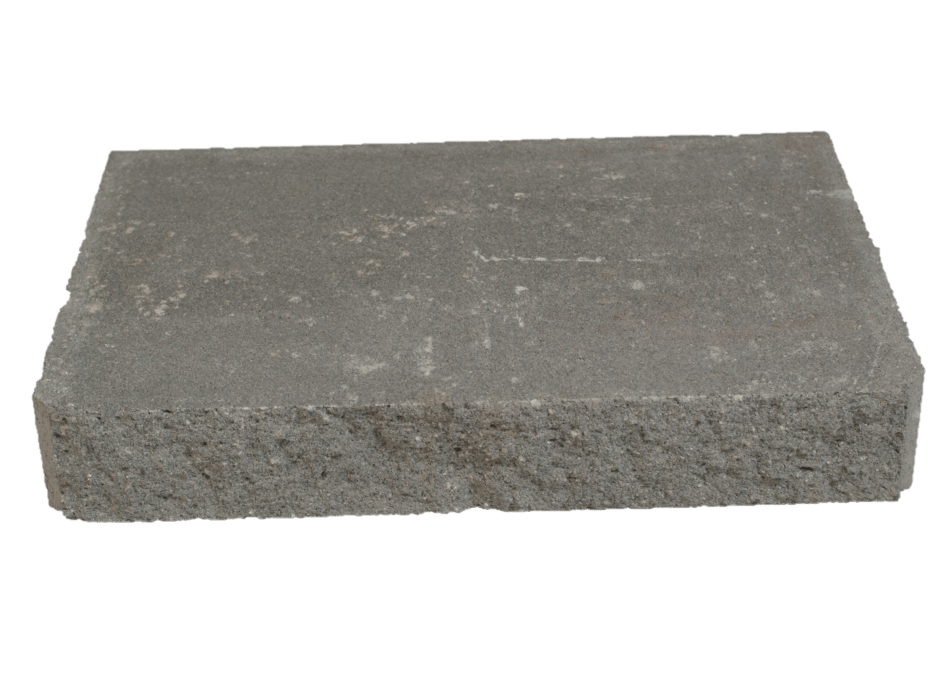

ABCR GR	AB Cap Rectangle	Gray	12″ x 3-5/8″ x 18″	56 lbs	56

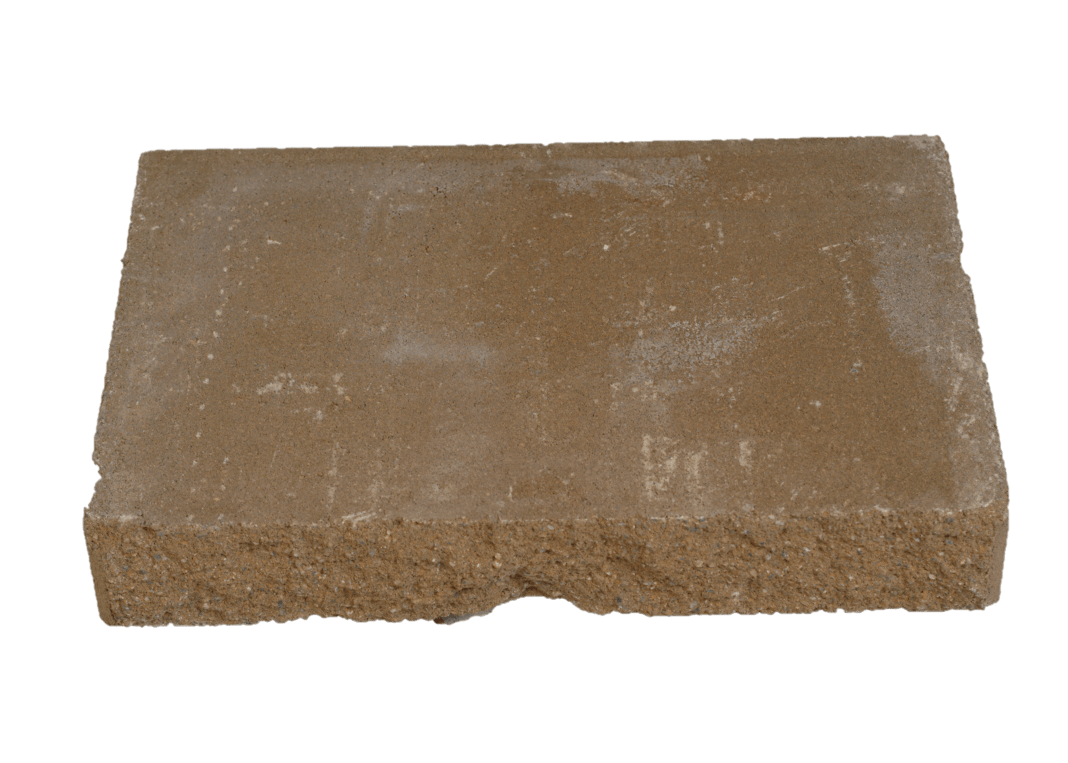

ABCR CB	AB Cap Rectangle	Caribou Buff	12″ x 3-5/8″ x 18″	56 lbs	56
ABCR KB	AB Cap Rectangle	Kodiak Brown	12″ x 3-5/8″ x 18″	56 lbs	56

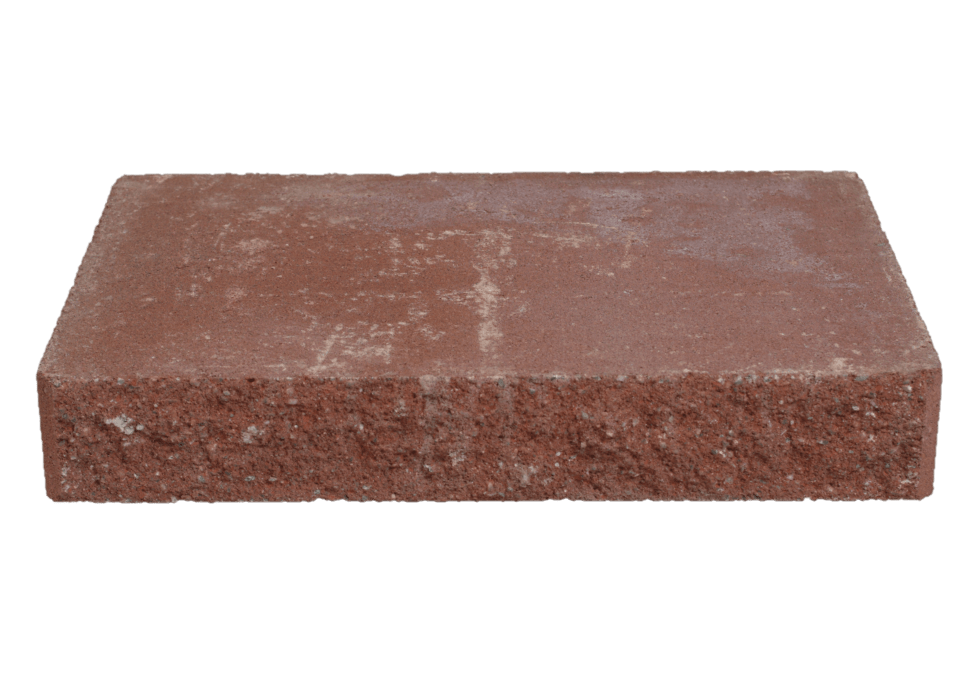

ABCR AR	AB Cap Rectangle	Aurora Red	12″ x 3-5/8″ x 18″	56 lbs	56

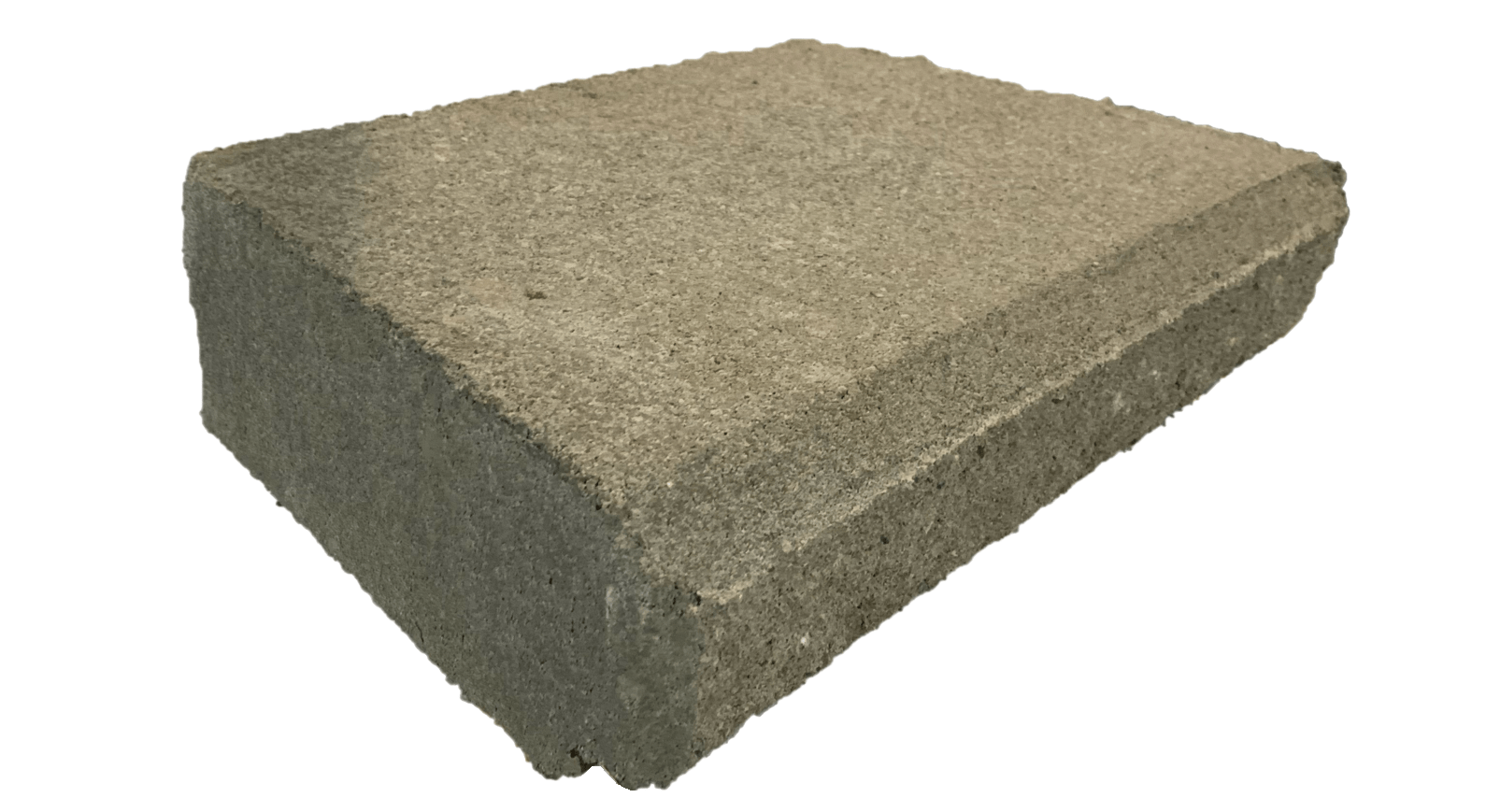

ABCA GR	AB Cap Angle	Gray	10″ x 3-5/8″ x 18″ front/ 13-5/8″ back	47 lbs	60
ABCA AB	AB Cap Angle	Caribou Buff	10″ x 3-5/8″ x 18″ front/ 13-5/8″ back	47 lbs	60

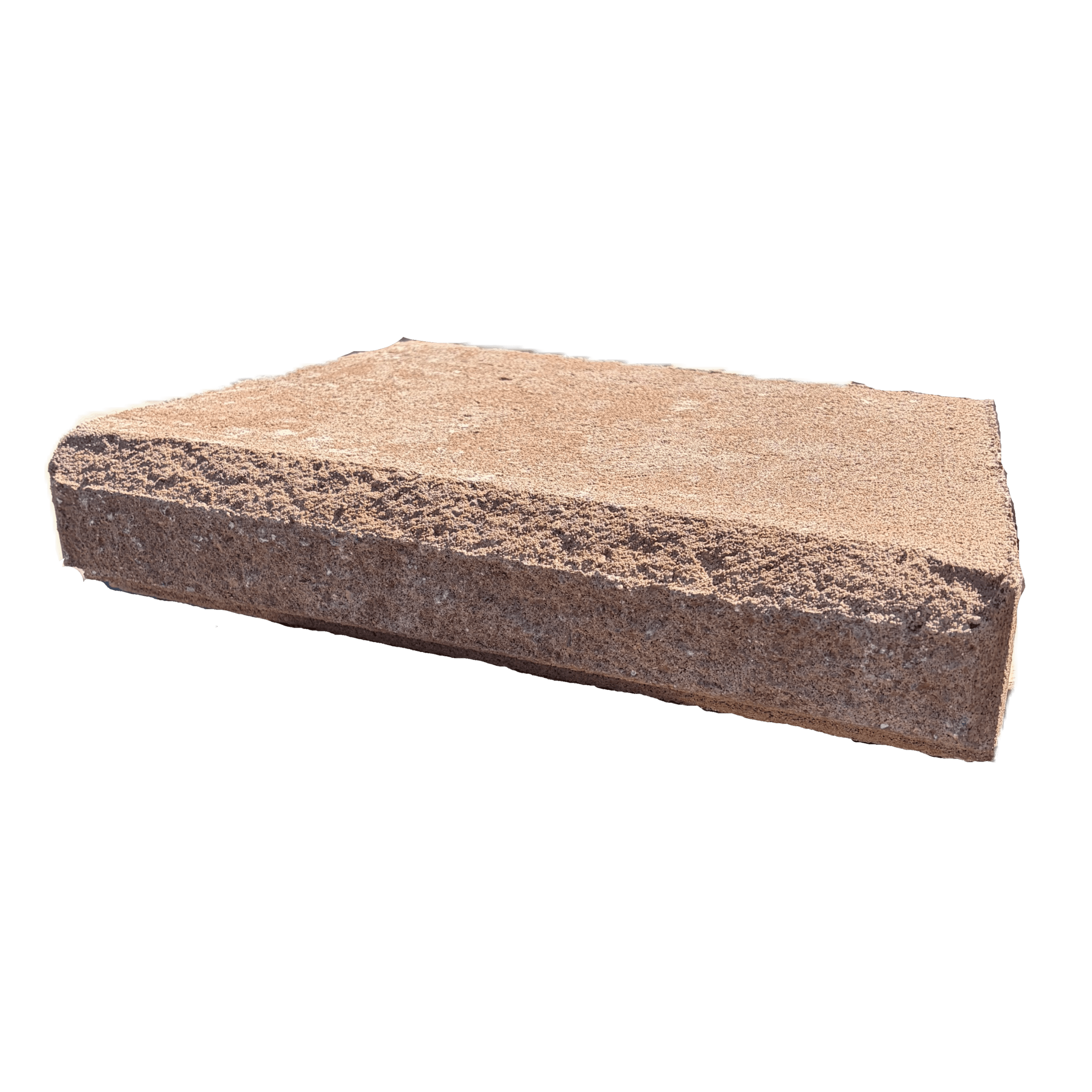

ABCA KB	AB Cap Angle	Kodiak Brown	10″ x 3-5/8″ x 18″ front/ 13-5/8″ back	47 lbs	60

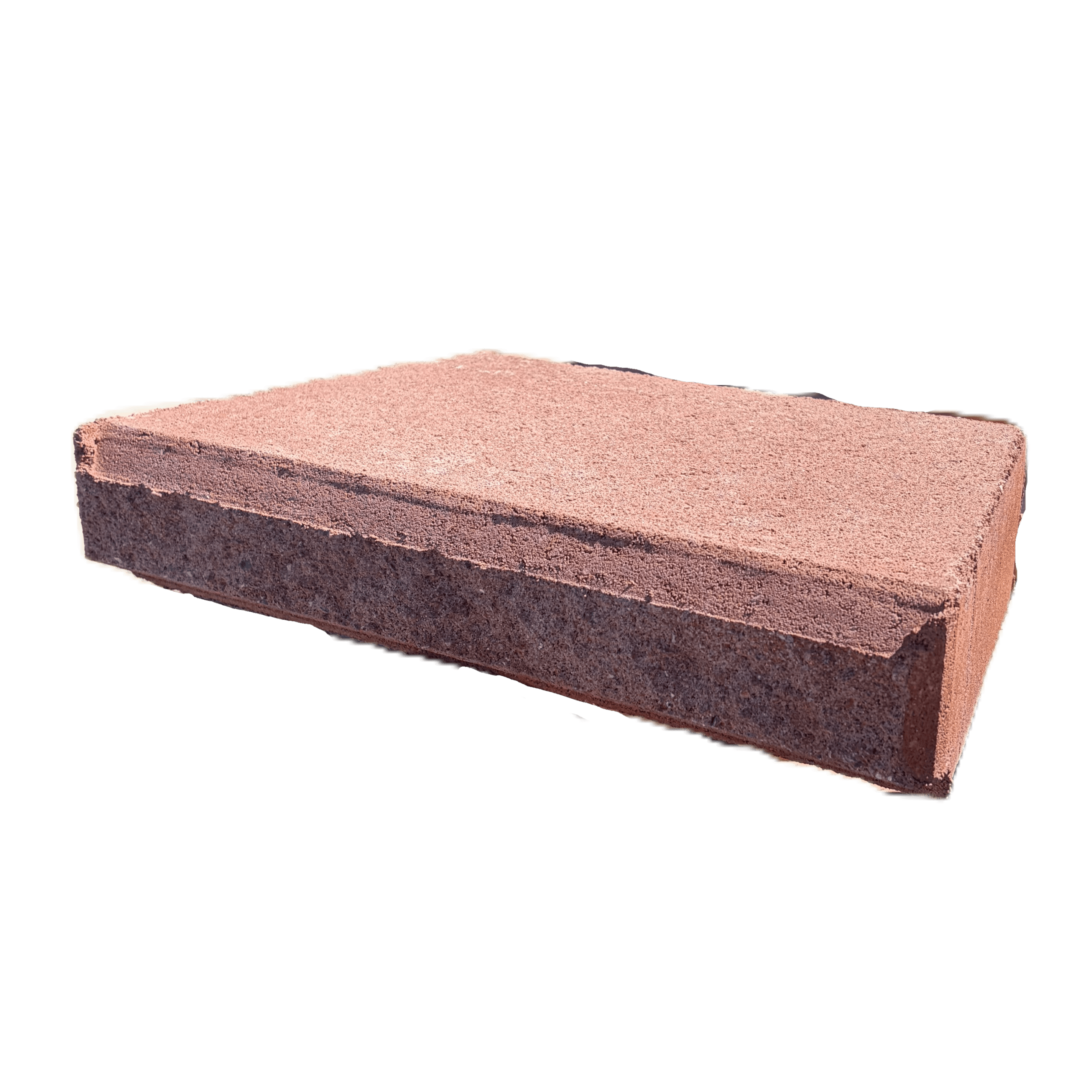

ABCA AR	AB Cap Angle	Aurora Red	10″ x 3-5/8″ x 18″ front/ 13-5/8″ back	47 lbs	60

Allan Block reinforcement grid is a light-duty grid manufactured by Huesker, Inc. Grid rolls are biaxial and designed to simply roll out along the wall.

Photo	Product Number	Description	Size(WxHxL)
	HSF 151520 B003	Allan Block Reinforcement Grid	3 ft x 50 ft
	HSF 151520 B004	Allan Block Reinforcement Grid	4 ft x 50 ft

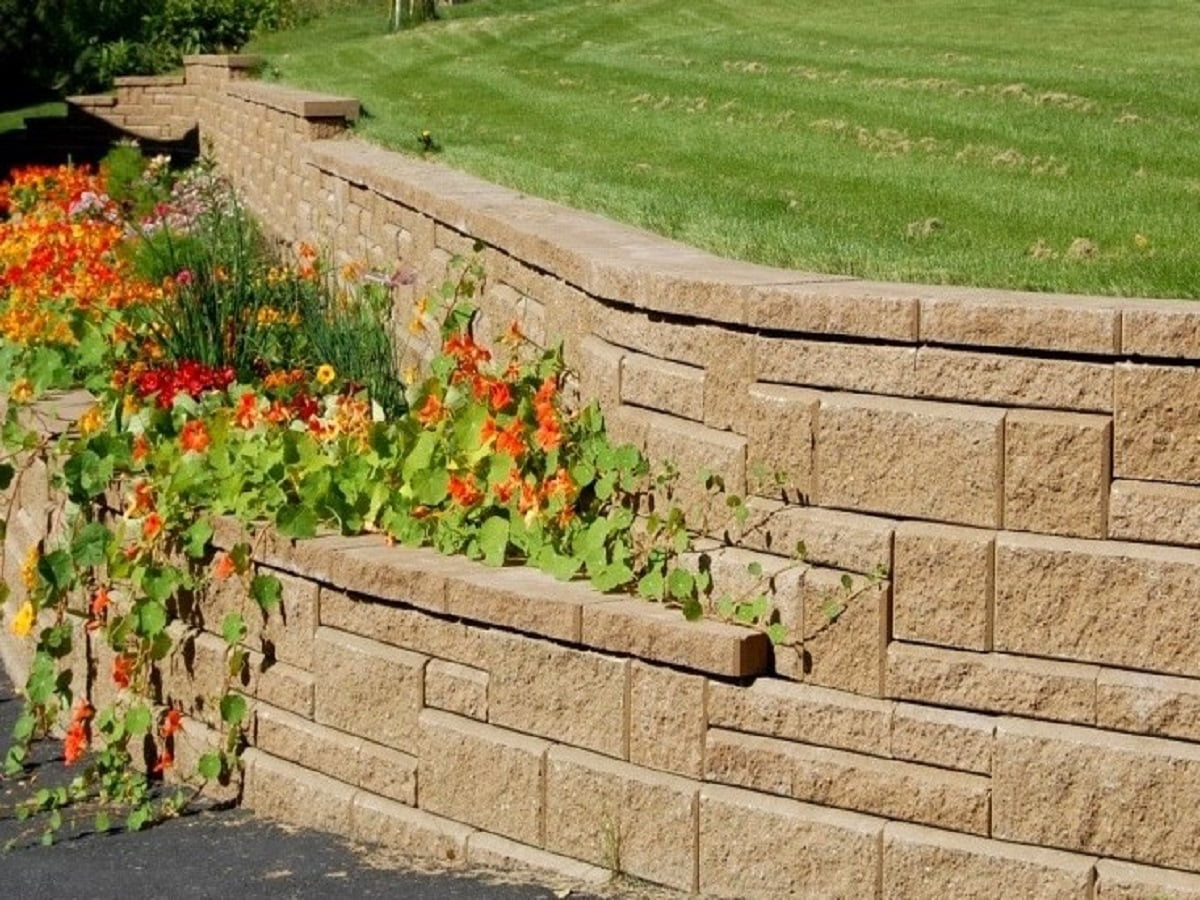

The AB Collection is easy to install. These blocks dry-stack without mortar or footings. The hollow core feature makes them easier to handle and promotes good drainage behind the wall. The raised lip and notch lock each block in place and creates a natural setback. Use one sized block or mix the different block sizes together in the wall to capture the look of hand laid stone. The AB Collection is right at home in residential settings where retaining walls 6’ and under are typically called for, and up to the task on larger retaining walls 6’ and over.

The design possibilities are endless. Use the blocks from the AB Collection individually or blend them together to create AB Ashlar Blend.

PRODUCT INFORMATION:

For more information and estimating tools visit www.allanblock.com
