Coil Anchor Bolt & Tang

Dayton Superior Tilt-Up Handbook

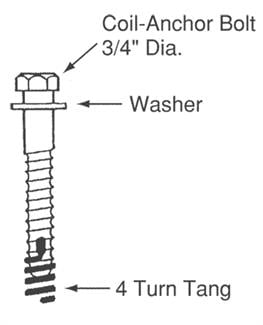

The Dayton Superior T13 Coil-Anchor is a drill-in expansion anchor designed for use in the floor slabs of tilt-up buildings to attach and anchor wall braces.

Each T13 plug includes the bolt, one cut washer and one tang.

Product Number	Description	Size	Available for Rent?
DST14 B6	Pipe Brace B-6	10 ft – 14 ft	Yes
DST14 B2	Pipe Brace B-2	13 ft – 20 ft 6 in	Yes
DST14 B5	Pipe Brace B-5	22 ft 6 in – 39 ft	Yes

Tilt-up is a job-site form of precast concrete construction. It involves prefabricating concrete wall sections, then lifting or tilting them up. Once they are in position, the panels are temporarily braced until they are tied into the roof and floor system. It is a fast, simple, and economical method of construction, which most recently been adapted successfully to multi-story structures.

Dayton Superior has been instrumental in developing and manufacturing the hardware necessary in the most critical steps for this method of construction — that of lifting the wall panel and placing it without damage. Our product development team continues to strive to provide a complete package for economical and safe construction of tilt-up buildings.
