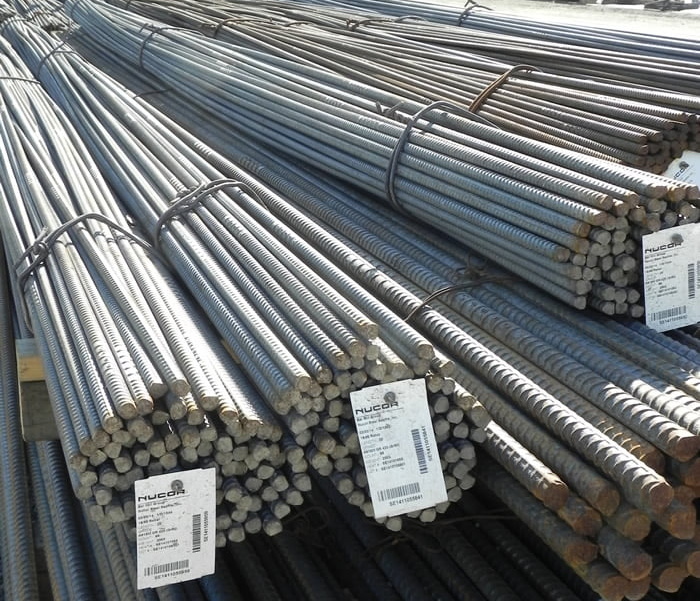

Dual Grade Rebar

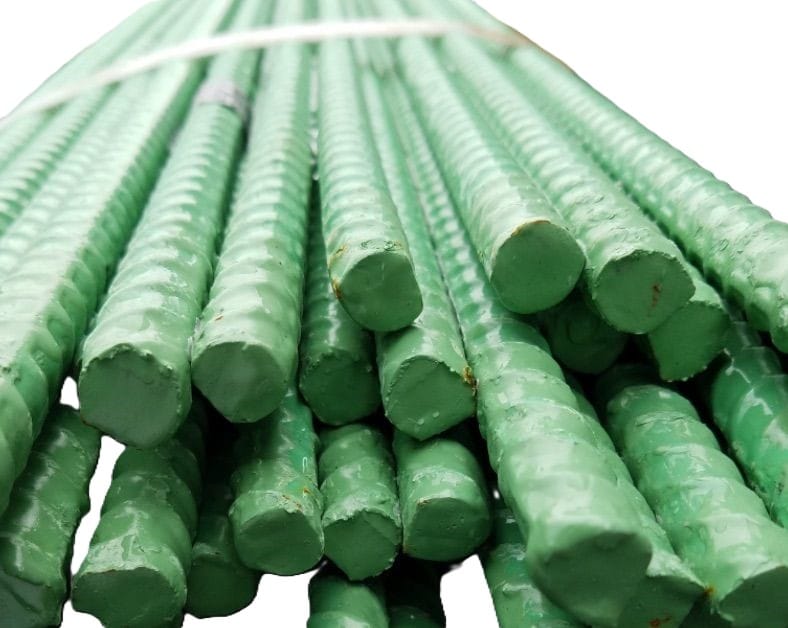

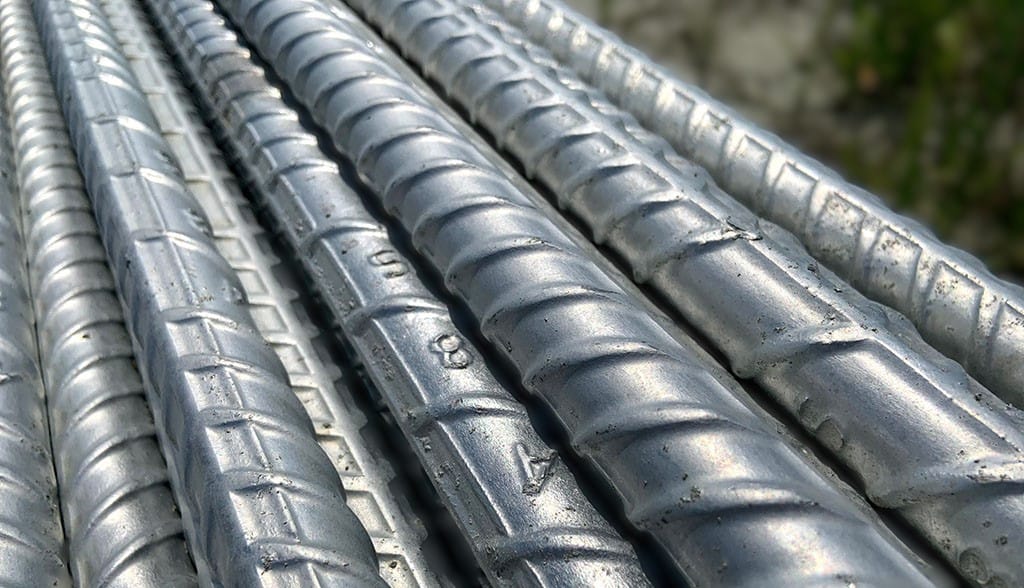

All of our black rebar is dual grade which follow ASTM A615 and A706. We also do stock some corrosion resistant options of reinforcement, please reach out for more details on those options.
| DUAL GRADE REINFORCEMENT ASTM A615 BLACK | ||||
|---|---|---|---|---|
| SIZE | 10 ft Stock | 20 ft Stock | 1 Ton Bundles (20 ft Sticks) | Weight (lb/ft) |
| #3 | Yes | Yes | No | 0.376 |
| #4 | Yes | Yes | Yes (150 @ 20 ft) | 0.668 |
| #5 | Yes | Yes | Yes (96 @ 20 ft) | 1.043 |
| ALSO AVAILABLE: | #5 Rebar: 3 ft-3 inches, Footing Dowels and Corner Bars (Bundles of 50) | |||
 |  | |||
| AVAILABLE UPON REQUEST: | #6 – #11 Dual Grade Rebar | |||
ASTM STANDARD INCH-POUND REINFORCING BARS | |||
| BAR SIZE DESIGNATION | NOMINAL DIMENSIONS | ||
| AREA (square inch) | WEIGHT (lt/ft) | DIAMETER (inch) | |
| #3 | 0.11 | 0.376 | 0.375 |
| #4 | 0.20 | 0.668 | 0.500 |
| #5 | 0.31 | 1.043 | 0.625 |
| #6 | 0.44 | 1.502 | 0.750 |
| #7 | 0.60 | 2.044 | 0.875 |
| #8 | 0.79 | 2.670 | 1.000 |
| #9 | 1.00 | 3.400 | 1.128 |
| #10 | 1.27 | 4.303 | 1.270 |
| #11 | 1.56 | 5.313 | 1.410 |
| #14 | 2.25 | 7.650 | 1.693 |
| #18 | 4.00 | 13.60 | 2.257 |
