Keystone Compac III Retaining Wall

Keystone Compac III series units are made of high-strength, low-absorption concrete for long lasting structures.

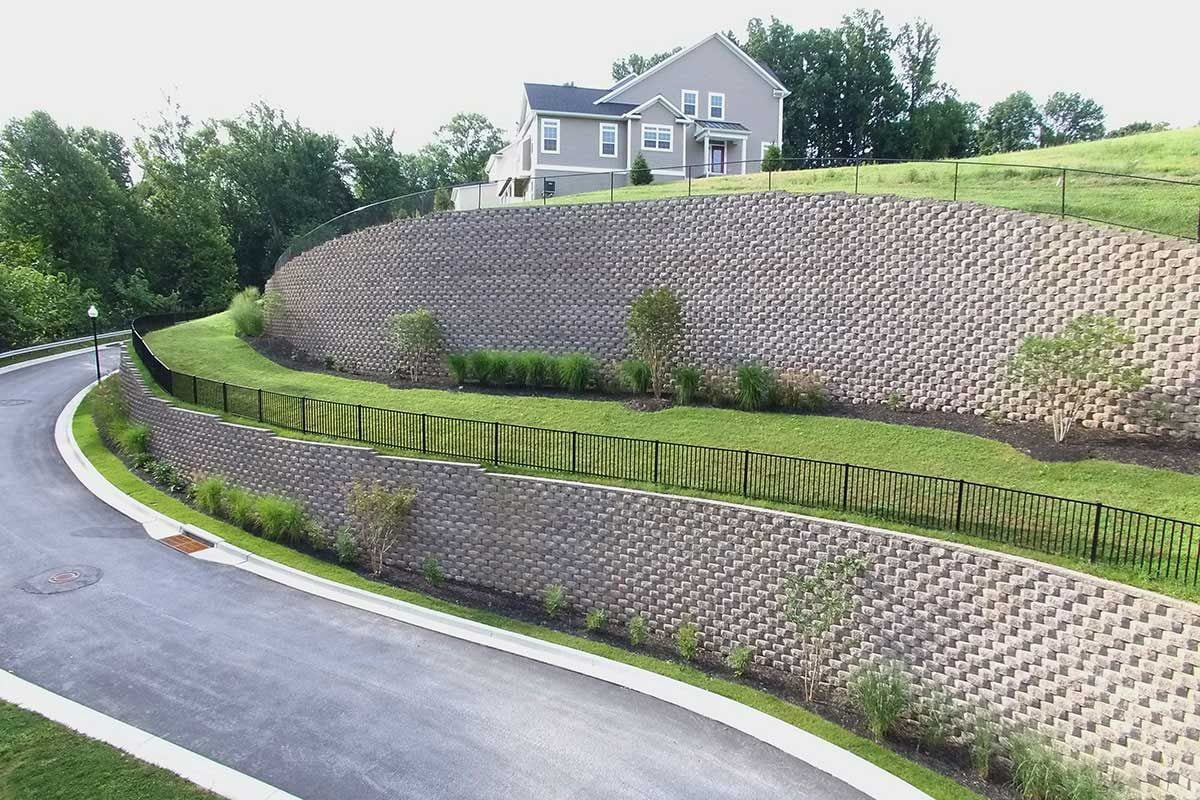

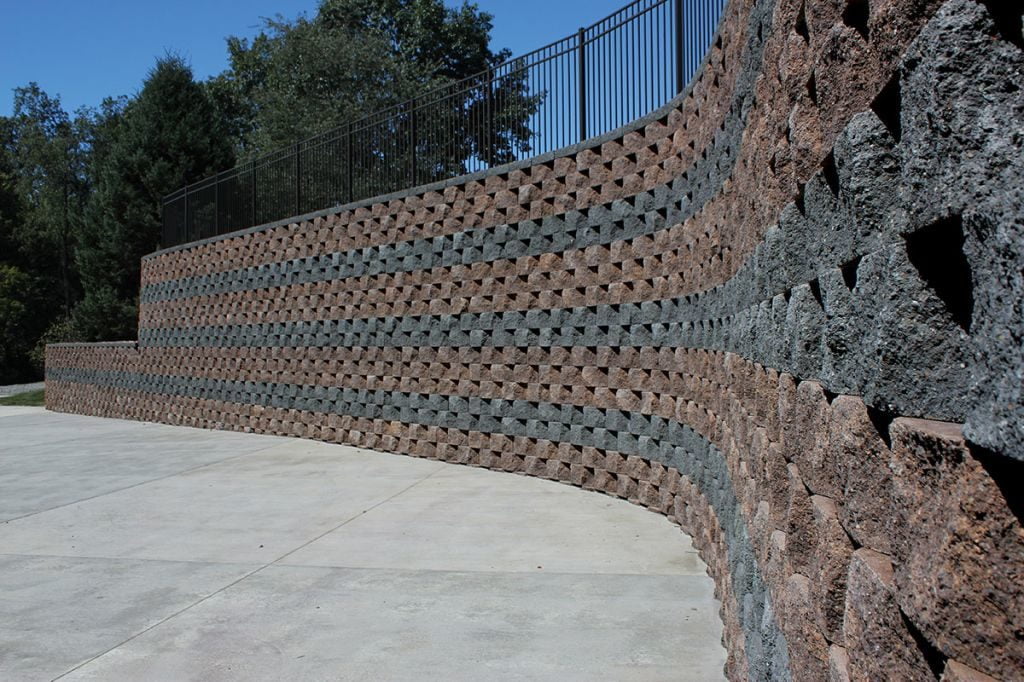

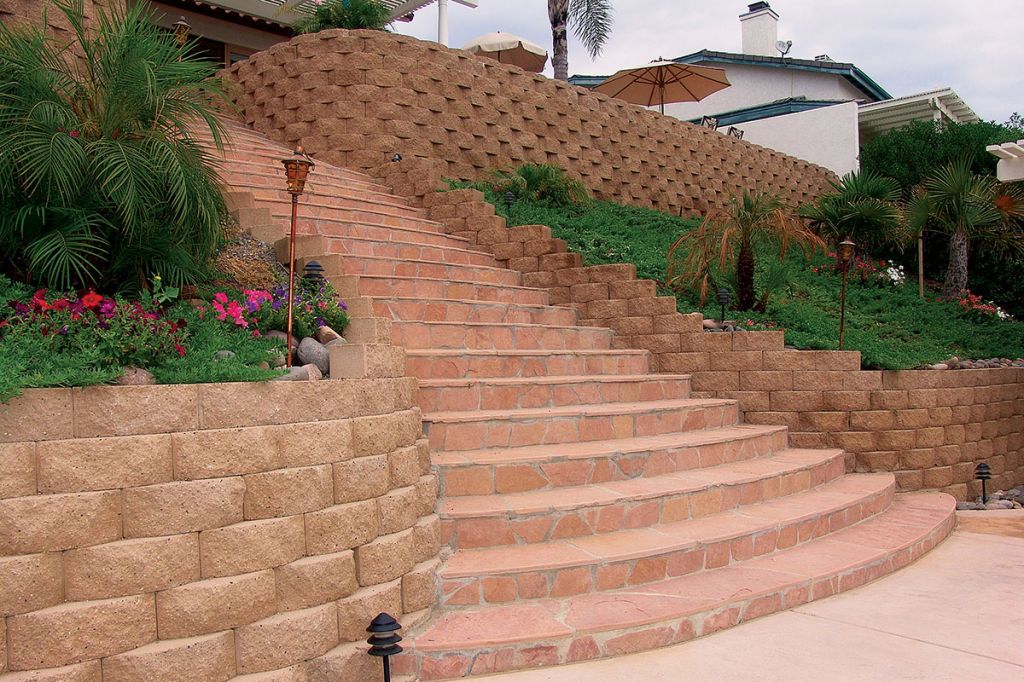

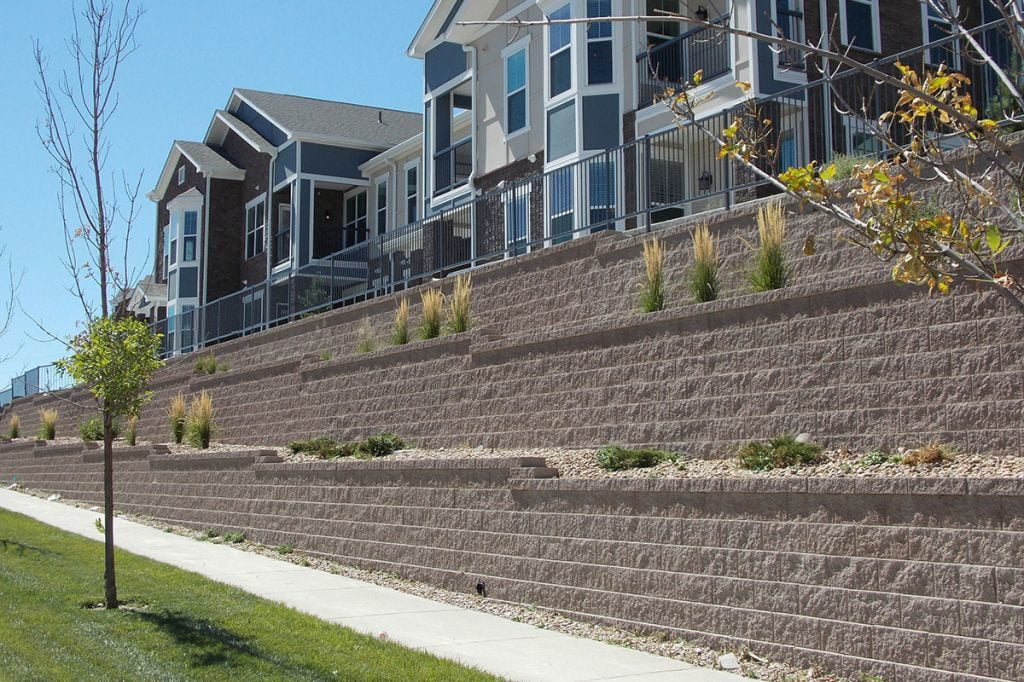

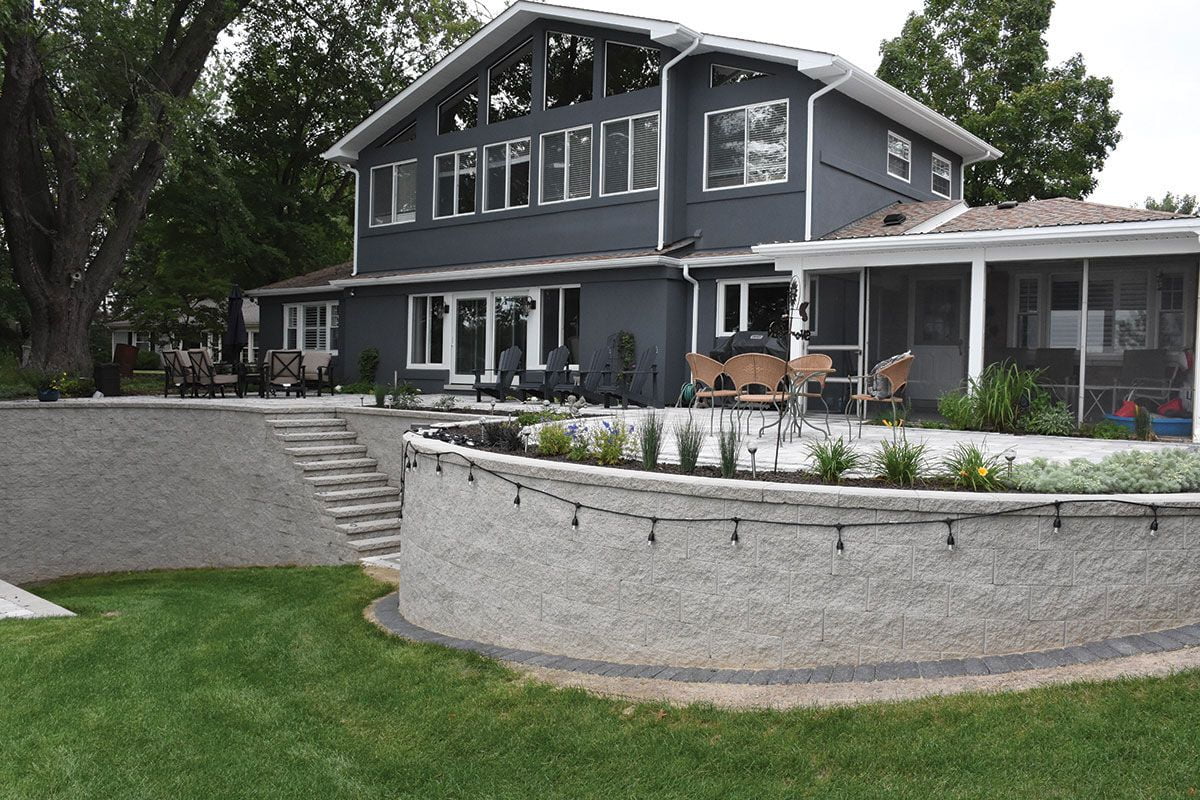

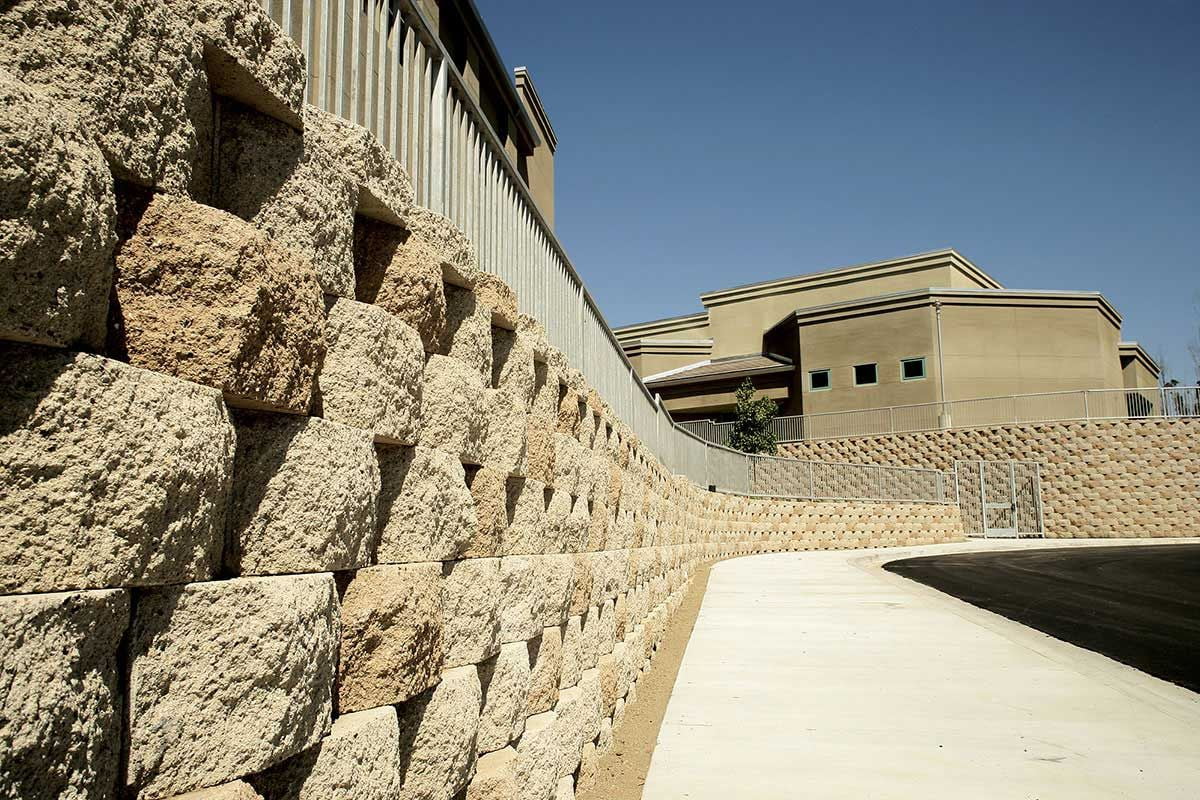

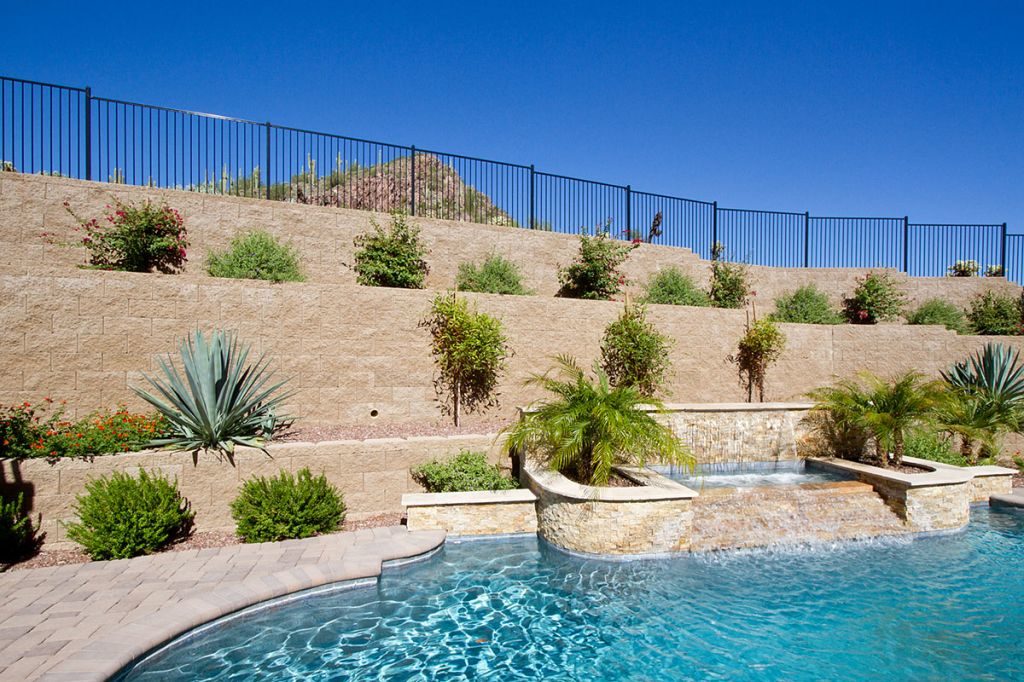

Crisp and distinctive, Keystone Compac’s straight split face effectively showcases the color within each unit; creating projects that leave a lasting impression; whereas Keystone Compac’s traditional sculptured tri-plane face adds visual appeal to any project through its use of depth and shadow.

​

Photo	Product Number	Description	Color	Dimensions (WxHxL)	Weight	No./ Pallet

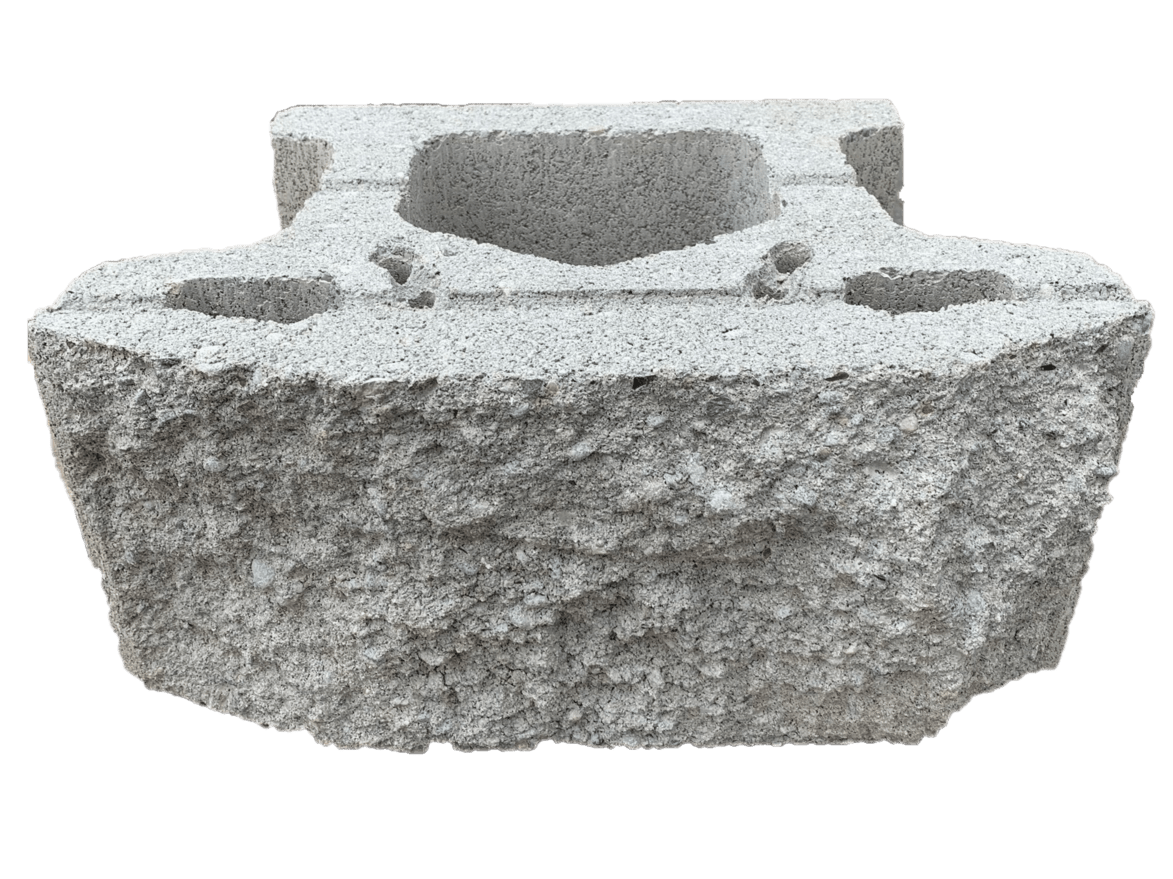

	KS 22263	Tri-Face	Gray	18″ x 8″ x 12″	85 lbs	36

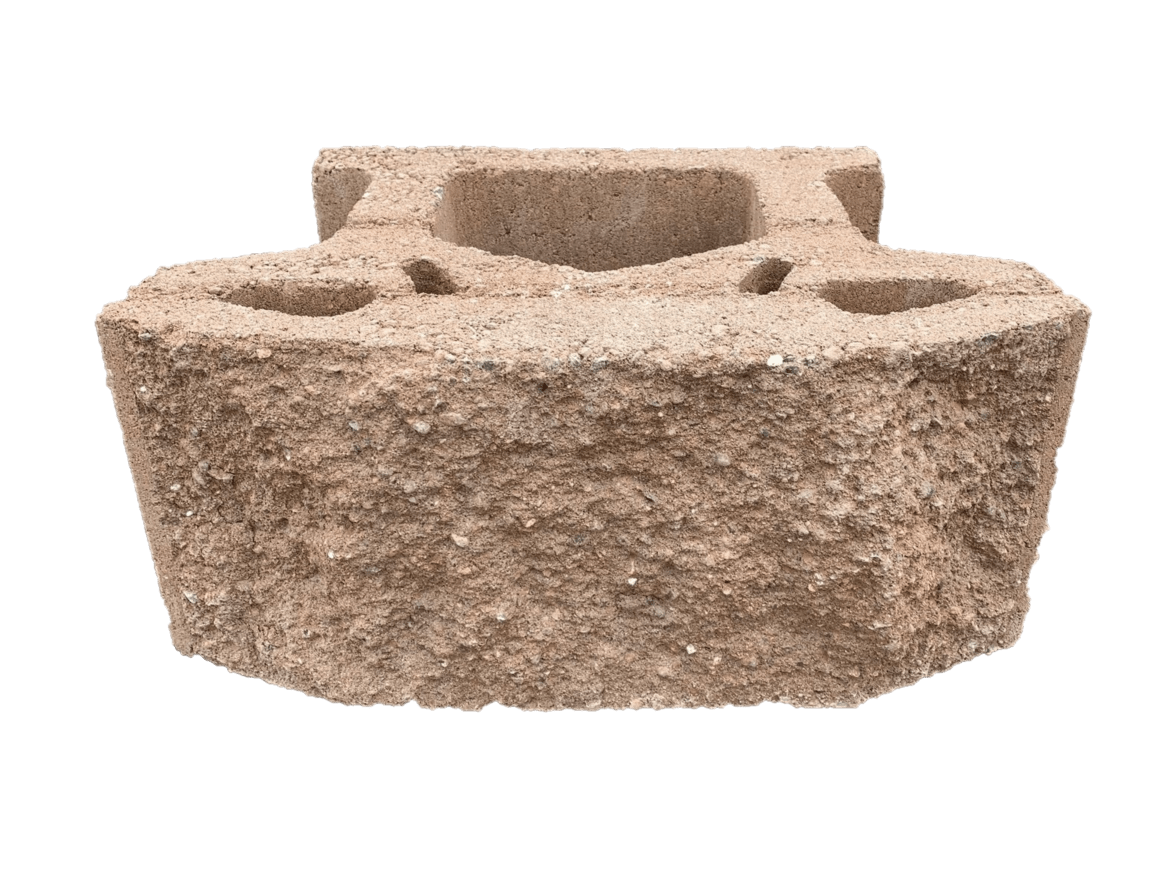

	KS 22265	Tri-Face	Tan	18″ x 8″ x 12″	85 lbs	36

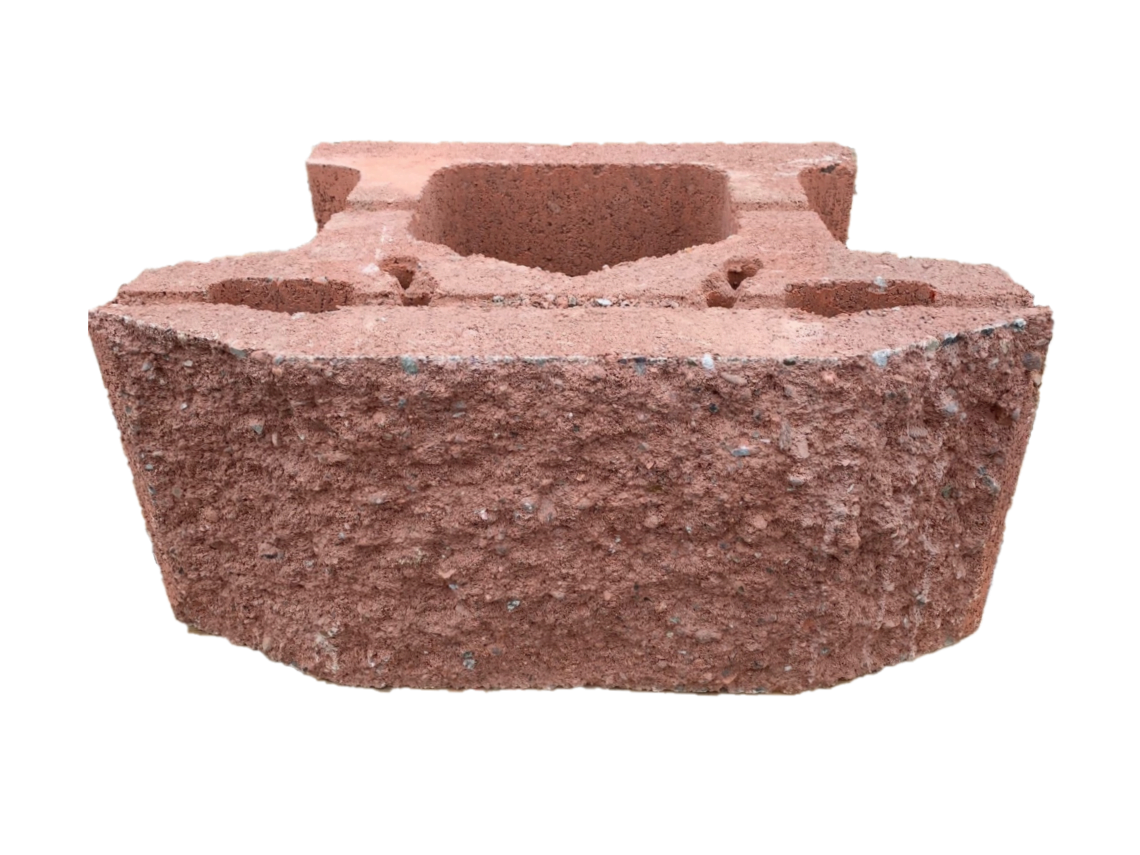

	KS 22264	Tri-Face	Rose	18″ x 8″ x 12″	85 lbs	36
	KS 22266	Tri-Face	Shadowblend	18″ x 8″ x 12″	85 lbs	36

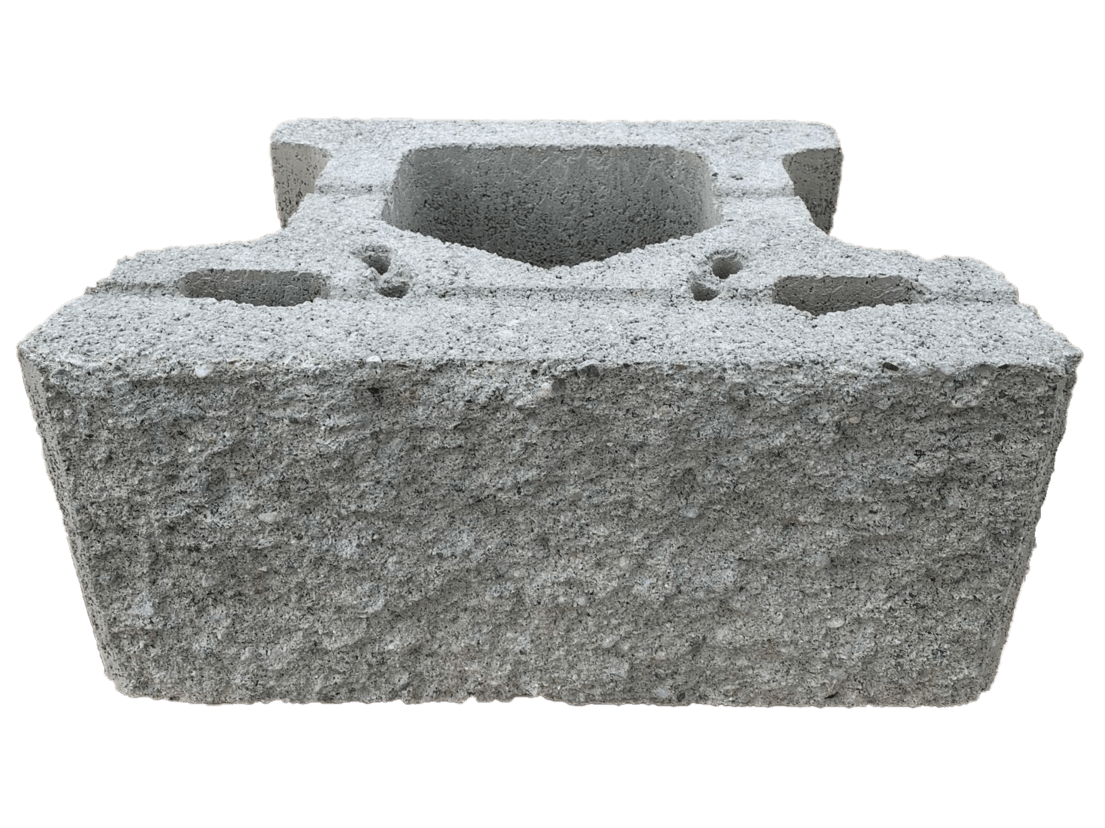

	KS 12562	Straight	Gray	18″ x 8″ x 12″	95 lbs	32

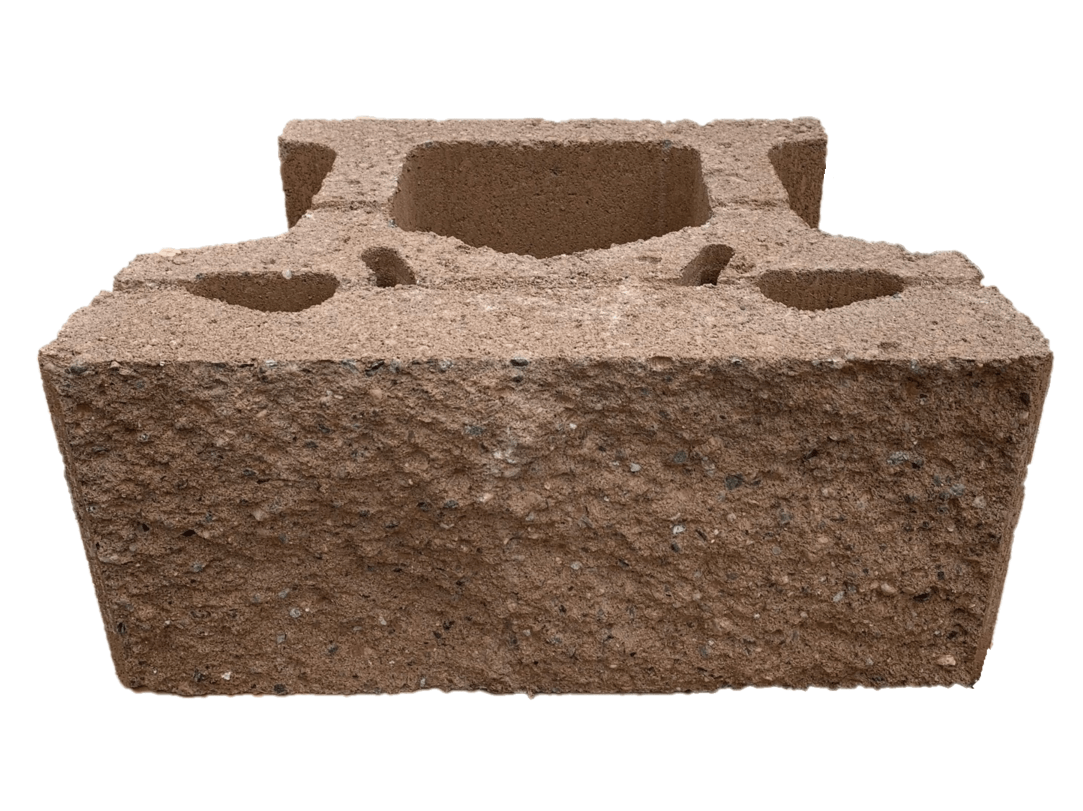

	KS 12564	Straight	Tan	18″ x 8″ x 12″	95 lbs	32

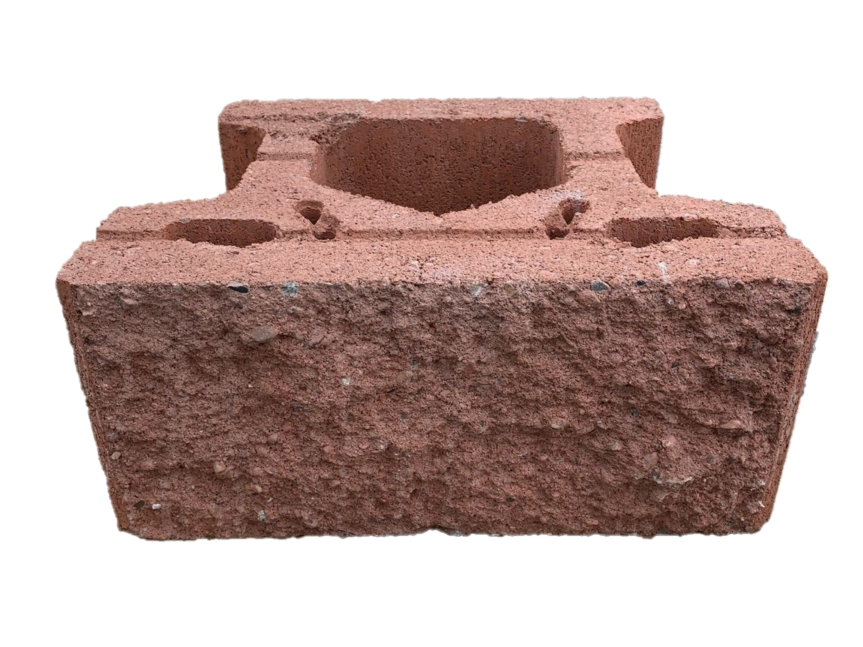

	KS 12563	Straight	Rose	18″ x 8″ x 12″	95 lbs	32

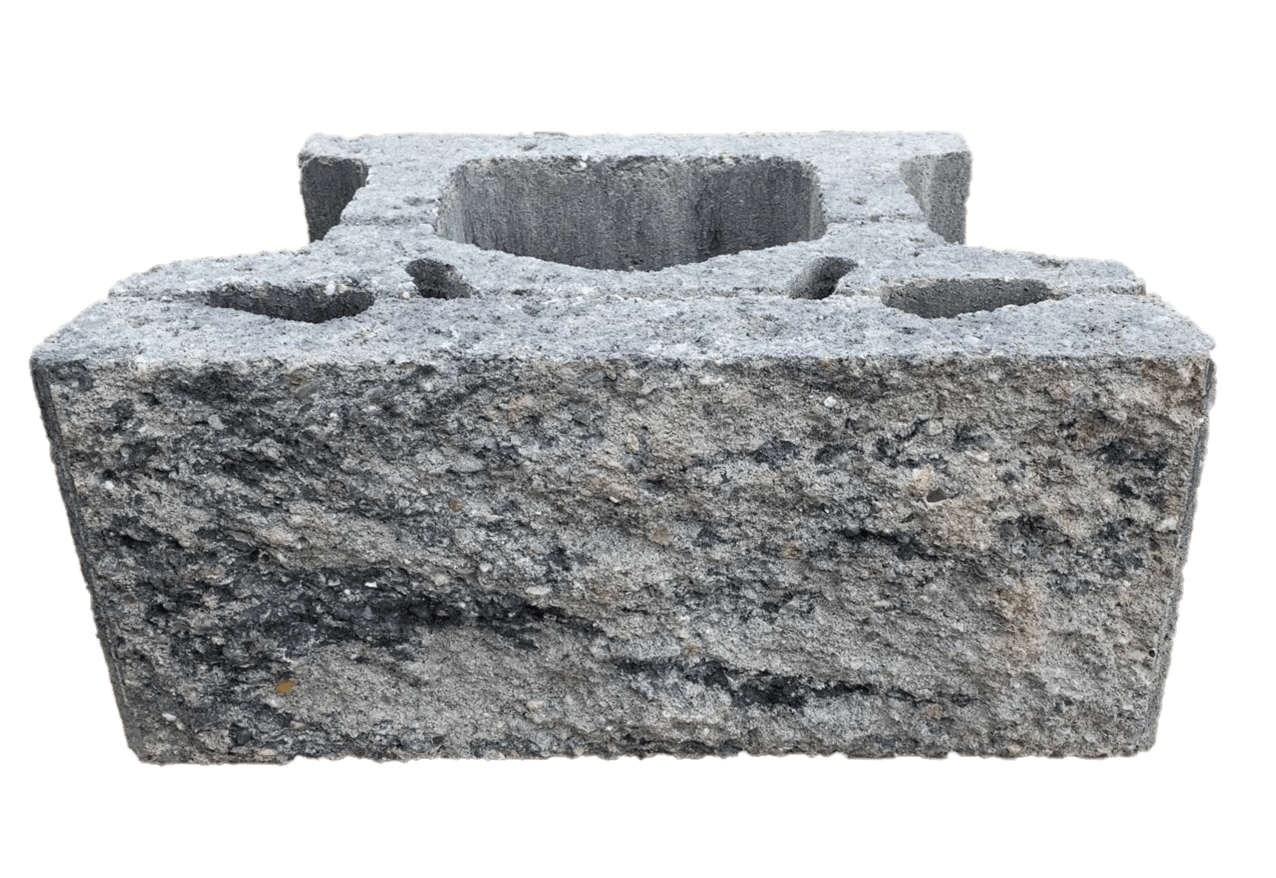

	KS 12565	Straight	Shadowblend	18″ x 8″ x 12″	95 lbs	32

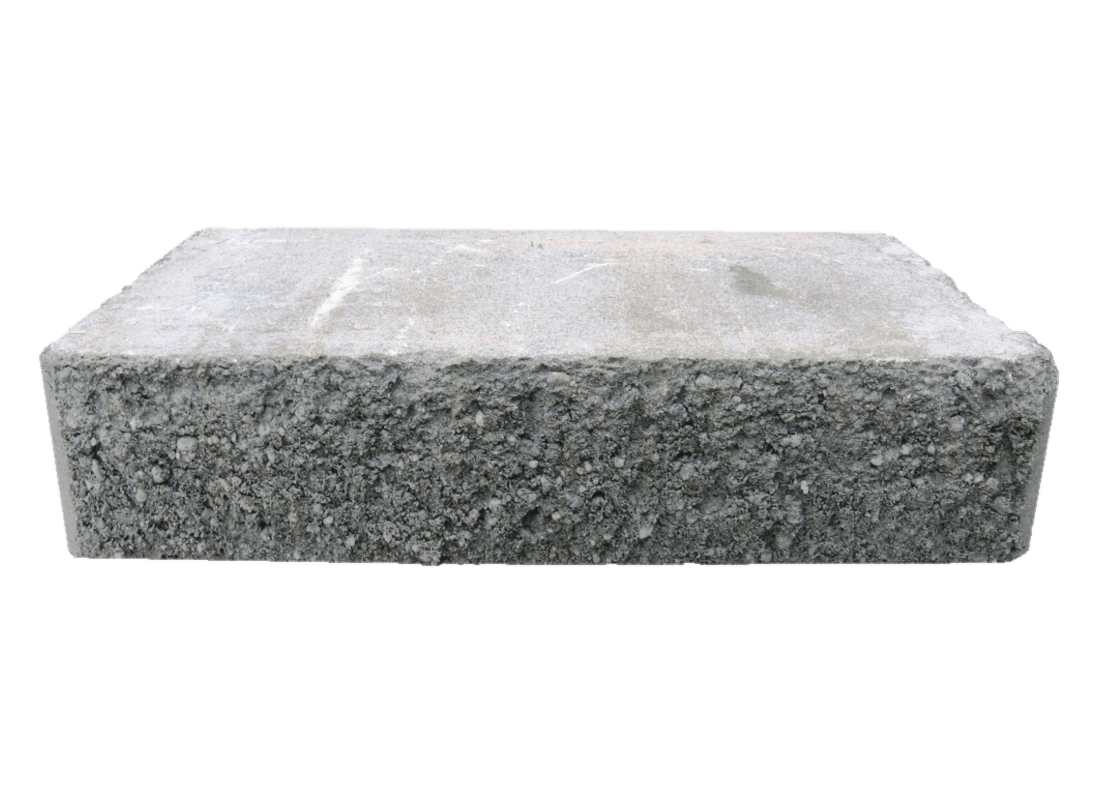

	KS 12701	Universal Cap	Gray	18″ x 4″ x 10-1/2″	60 lbs	64

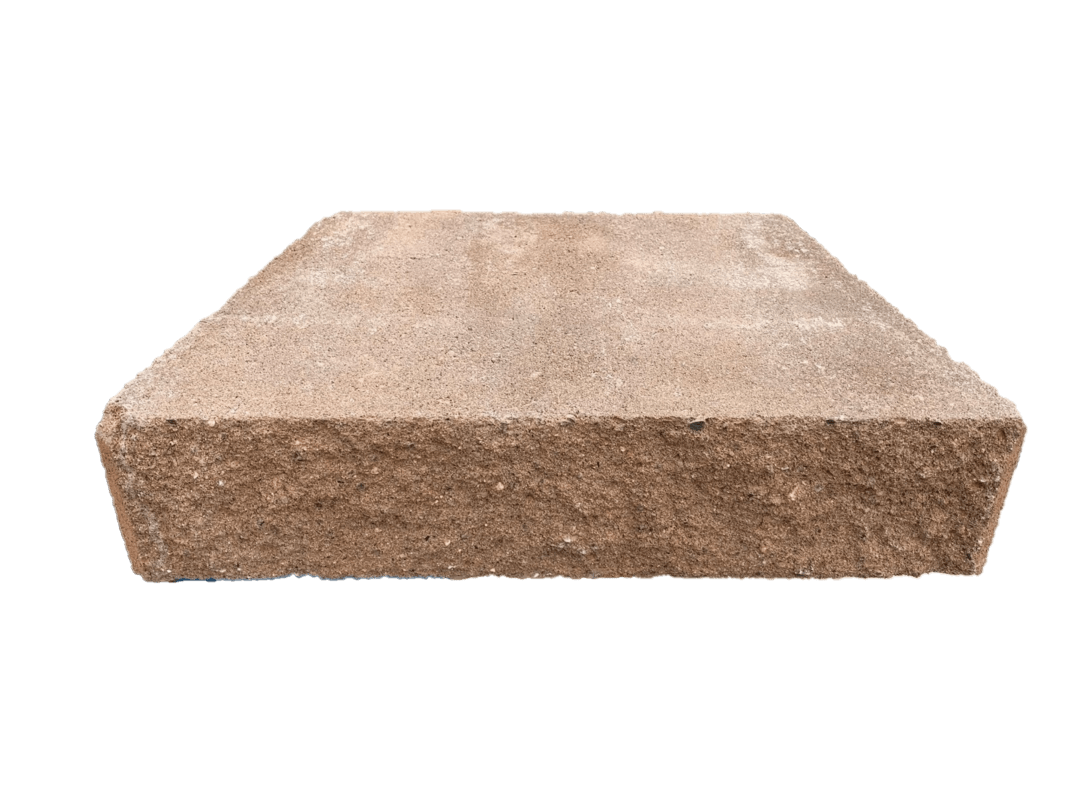

	KS 12702	Universal Cap	Tan	18″ x 4″ x 10-1/2″	60 lbs	64
	KS 12703	Universal Cap	Rose	18″ x 4″ x 10-1/2″	60 lbs	64

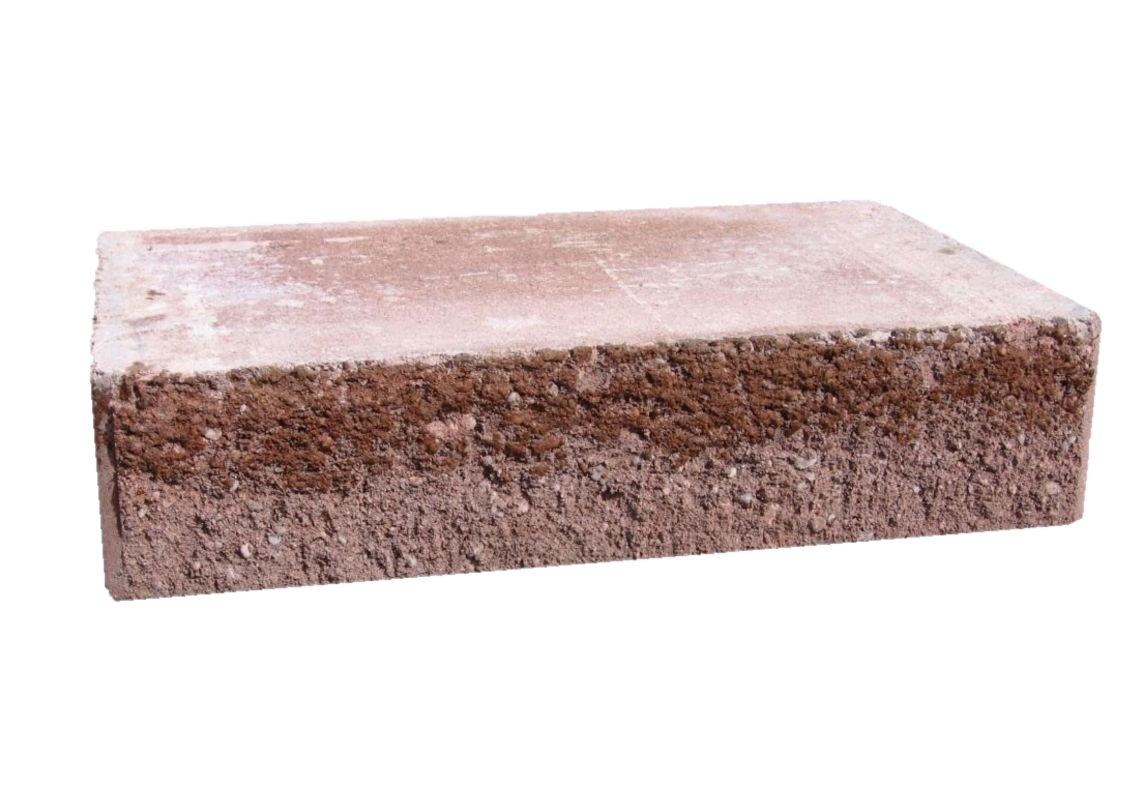

Keystone Compac Universal caps are split on both sides and rotate back and forth for a straight line.

Keystone Compac III Series units are interconnected using high-strength fiberglass pins for strong shear connection. The connecting pins allow for ease of unit alignment and secure positive mechanical connection with soil reinforcement materials. Keystone’s patented pin system is the critical difference providing the safety and security of a structural retaining wall solution.

Photo	Product Number	Description	Flexural Strength	Short Beam Shear Strength	Size	Reference Standards
	KS 31100	Fiberglass Pins	Min 128,000 psi (885 MPa)	Min 6,400 psi (44 MPa)	5-1/5″ x 1/2″ dia	ASTM D-4476 ASTM d-4475
